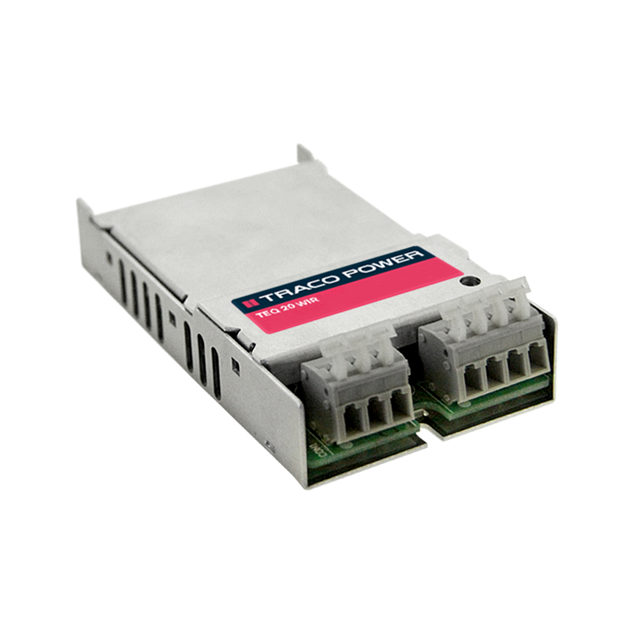

TEQ 20-4823WIR
ActiveTraco Power
DC/DC CONVERTER +/-15V 20W
Deep-Dive with AI
Search across all available documentation for this part.
TEQ 20-4823WIR
ActiveTraco Power
DC/DC CONVERTER +/-15V 20W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TEQ 20-4823WIR |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Current - Output (Max) | 667 mA |
| Current - Output (Max) | 667 mA |
| Efficiency | 88 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 93 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 4.06 " |
| Size / Dimension [x] | 103.1 mm |
| Size / Dimension [y] | 57.2 mm |
| Size / Dimension [y] | 2.25 in |
| Size / Dimension [z] | 26.2 mm |
| Size / Dimension [z] | 1.03 in |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 152.83 | |
| 10 | $ 140.33 | |||
| 25 | $ 135.65 | |||
| 50 | $ 132.20 | |||
| 100 | $ 115.40 | |||
Description
General part information
TEQ 20 Series
Enclosed DC DC Converter 2 Output 15V -15V 667mA, 667mA 75V Input
