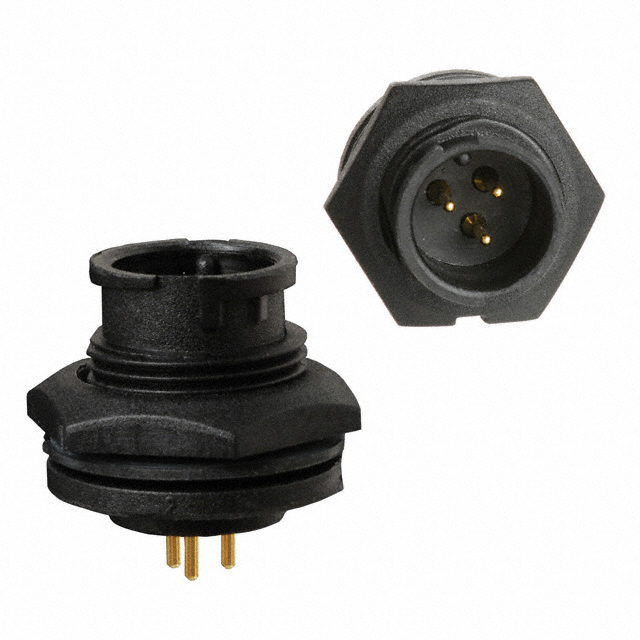

A-CR-03PMMP-LC-WP

Obsolete

Assmann WSW Components

CONN RCPT MALE 3POS GOLD SOLDER

Search across all available documentation for this part.

Obsolete

Assmann WSW Components

CONN RCPT MALE 3POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	A-CR-03PMMP-LC-WP

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Solder

Part	Shielding	Ingress Protection	Current Rating (Amps)	Contact Finish - Mating	Primary Material	Mounting Feature	Color	Fastening Type	Connector Type	Shell Material	Orientation	Contact Material	Mounting Type	Termination
Assmann WSW Components A-CR-03PMMP-LC-WP	Unshielded	IP67 - Dust Tight Waterproof	5 A	Gold	Plastic	Bulkhead - Front Side Nut	Black	Bayonet Lock	Male Pins Receptacle	Glass Filled Nylon Polyamide (PA)	Keyed	Copper Alloy	Panel Mount Through Hole	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Position Circular Connector Receptacle, Male Pins Solder

Technical documentation and resources

No documents available
