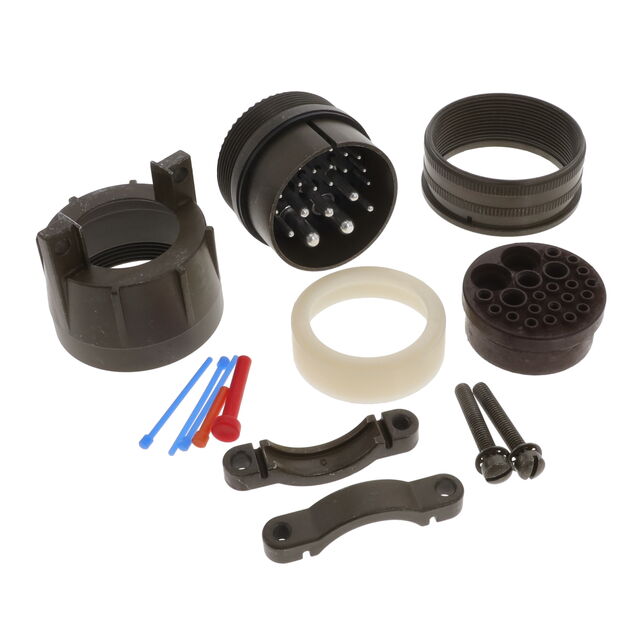

MS3106E32-6P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3106E32-6P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106E32-6P

Applications	Military, Marine
Cable Opening [custom]	1.156 in
Cable Opening [custom]	29.36 mm
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A, 46 A, 23 A, 80 A
Features	Cable Clamp, Coupling Nut, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	23
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	32-6
Shielding	Unshielded

MS3106E32 Series

Part	Shell Finish	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Orientation	Contact Material	Number of Positions	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Mounting Type	Primary Material	Voltage Rating	Color	Applications	Shielding	Contact Finish - Mating	Grade	Insert Material	Shell Material	Qualification	Cable Opening [custom]	Cable Opening [custom]	Current Rating (Amps)	Features	Shell Size - Insert
Amphenol Industrial Operations MS3106E-32-8P
Amphenol Industrial Operations MS3106E32-15P	Olive Drab Chromate over Cadmium	Male Pins Plug	-55 °C	125 °C	Environment Resistant	N	Copper Alloy	8	15	32	Free Hanging (In-Line)	Metal	900 VAC 1250 VDC	Olive Drab	Marine Military	Unshielded	Silver	Military	Neoprene	Aluminum Alloy	MIL-DTL-5015	1.156 in	29.36 mm	23 A 150 A	Backshell Cable Clamp Coupling Nut
Amphenol Industrial Operations MS3106E32-9P
Amphenol Industrial Operations MS3106E32-15PY
Amphenol Industrial Operations MS3106E32-8P	Olive Drab Chromate over Cadmium	Male Pins Plug	-55 °C	125 °C	Environment Resistant	N	Copper Alloy	30			Free Hanging (In-Line)	Metal		Olive Drab	Marine Military	Unshielded	Silver		Neoprene	Aluminum Alloy	MIL-5015	1.156 in	29.36 mm		Backshell Cable Clamp Coupling Nut	32-8
Amphenol Industrial Operations MS3106E32-8PX
Amphenol Industrial Operations MS3106E32-8PZ
Amphenol Industrial Operations MS3106E32-15PZ
Amphenol Industrial Operations MS3106E32-9S	Olive Drab Chromate over Cadmium	Female Sockets Plug	-55 °C	125 °C	Environment Resistant	N	Copper Alloy	14			Free Hanging (In-Line)	Metal	900 VAC 1250 VDC	Olive Drab	Marine Military	Unshielded	Silver	Military	Neoprene	Aluminum Alloy	MIL-DTL-5015	1.156 in	29.36 mm	13 A 80 A	Backshell Cable Clamp Coupling Nut	32-9
Amphenol Industrial Operations MS3106E32-6P	Olive Drab Chromate over Cadmium	Male Pins Plug	-55 °C	125 °C	Environment Resistant	N	Copper Alloy	23			Free Hanging (In-Line)	Metal		Olive Drab	Marine Military	Unshielded	Silver	Military	Neoprene	Aluminum Alloy	MIL-DTL-5015	1.156 in	29.36 mm	13 A 23 A 46 A 80 A	Backshell Cable Clamp Coupling Nut	32-6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 90.88
		10	$ 83.40
		25	$ 80.19
		50	$ 77.52
		100	$ 73.24

Description

General part information

MS3106E32 Series

23 Position Circular Connector Plug, Male Pins Solder Cup
