PSAA06A-120L6-R-CR1

Obsolete

Phihong USA

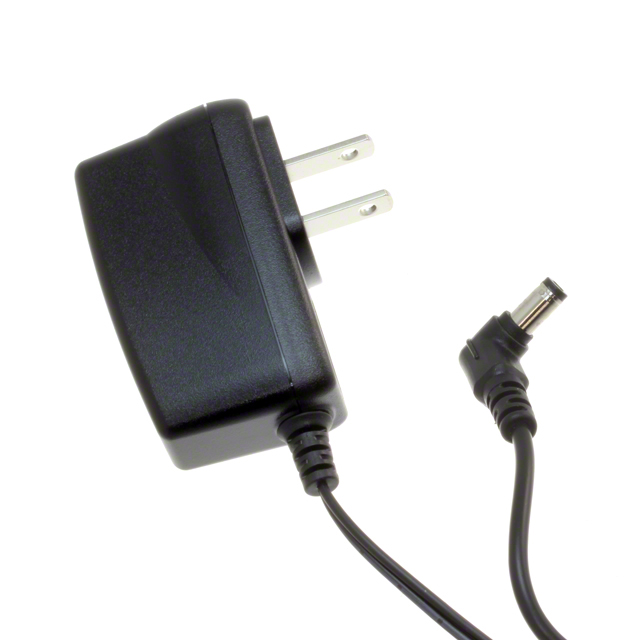

AC/DC WALL MOUNT ADAPTER 12V 6W

Search across all available documentation for this part.

Obsolete

Phihong USA

AC/DC WALL MOUNT ADAPTER 12V 6W

Technical Specifications

Parameters and characteristics for this part

Specification	PSAA06A-120L6-R-CR1

Applications	ITE (Commercial)
Approval Agency	cULus
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	500 mA
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	30 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug R/A
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	10 mm
Polarization	Positive Center
Power (Watts)	6 W
Region Utilized	North America
Size / Dimension [x]	2.62 in
Size / Dimension [x]	66.5 mm
Size / Dimension [y]	1.1 in
Size / Dimension [y]	28 mm
Size / Dimension [z]	1.54 "
Size / Dimension [z]	39 mm
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Current - Output (Max) [Max]	Form	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	No Load Power Consumption [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Polarization	Cord Length	Cord Length	Efficiency	Output Connector [diameter]	Output Connector [x]	Output Connector	Region Utilized	Input Connector	Input Type	Standard Number
Phihong USA PSAA06A-120L6	500 mA	Wall Mount (Class II)	6 W	90 VAC	264 VAC	ITE (Commercial)	cULus	1.54 "	1.1 in	2.62 in	28 mm	66.5 mm	39 mm	30 mW	40 °C	0 °C	12 V	Positive Center	1.2 m	47.2 in	Level VI	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	North America	NEMA 1-15P	Fixed Blade
Phihong USA PSAA06A-120L6-R-CR1	500 mA	Wall Mount (Class II)	6 W	90 VAC	264 VAC	ITE (Commercial)	cULus	1.54 "	1.1 in	2.62 in	28 mm	66.5 mm	39 mm	30 mW	40 °C	0 °C	12 V	Positive Center	1.2 m	47.2 in	Level VI	2.1 mm 5.5 mm	10 mm	Barrel Plug R/A	North America	NEMA 1-15P	Fixed Blade	60950-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.18

General part information

12V 6 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
