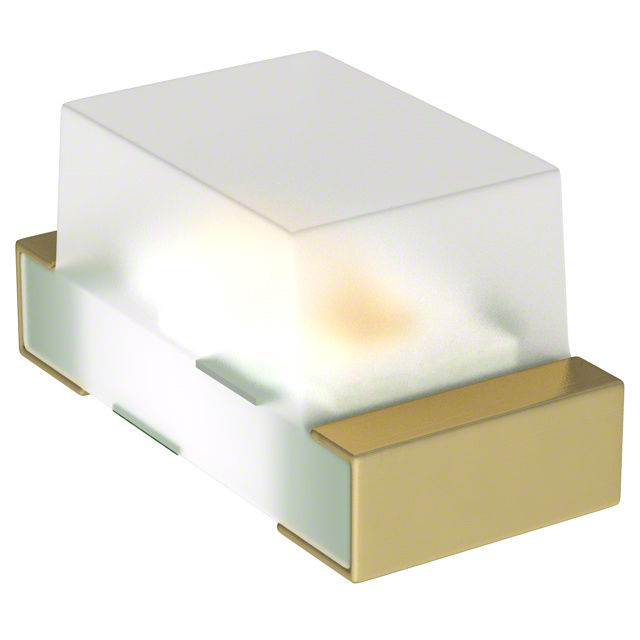

PT19-21C/L41/TR8
ActiveEverlight Electronics Co Ltd
PHOTO TRANSISTOR, 940NM, 0.02A I(C), LEAD FREE, MINIATURE, SMD, 2 PIN
Deep-Dive with AI
Search across all available documentation for this part.
PT19-21C/L41/TR8
ActiveEverlight Electronics Co Ltd
PHOTO TRANSISTOR, 940NM, 0.02A I(C), LEAD FREE, MINIATURE, SMD, 2 PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PT19-21C/L41/TR8 |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 20 mA |
| Current - Dark (Id) (Max) [Max] | 100 nA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Top View |
| Package / Case | 0603 (1608 Metric) |
| Power - Max [Max] | 75 mW |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 30 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.40 | |
| 10 | $ 0.23 | |||
| 100 | $ 0.14 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.09 | |||
| Digi-Reel® | 1 | $ 0.40 | ||
| 10 | $ 0.23 | |||
| 100 | $ 0.14 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.09 | |||
| Tape & Reel (TR) | 4000 | $ 0.09 | ||
| 8000 | $ 0.08 | |||
| 12000 | $ 0.08 | |||
| 20000 | $ 0.07 | |||
| 28000 | $ 0.07 | |||
| 40000 | $ 0.07 | |||
| 100000 | $ 0.07 | |||
Description
General part information
PT19-21 Series
Phototransistors 940nm Top View 0603 (1608 Metric)
