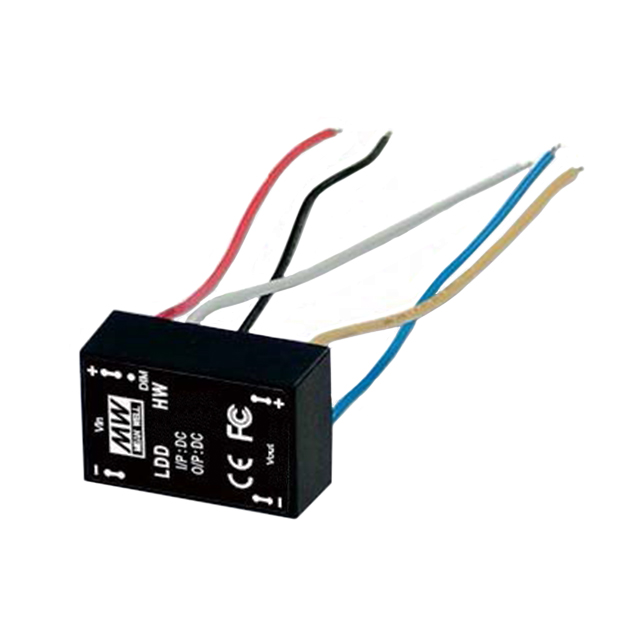

LDD-500HW
ObsoleteMEAN WELL USA Inc.
LED DRIVER CC BUCK 2-52V 500MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LDD-500HW
ObsoleteMEAN WELL USA Inc.
LED DRIVER CC BUCK 2-52V 500MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LDD-500HW |
|---|---|
| Approval Agency | CE |
| Current - Output (Max) [Max] | 500 mA |
| Dimming | PWM |
| Efficiency | 97 % |
| Features | Remote On/Off, SCP, OTP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Ratings | IP67 |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [z] | 0.48 in |
| Size / Dimension [z] | 12.2 mm |
| Termination Style | Wire Leads |
| Topology | Buck |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 56 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Output [Max] | 52 V |
| Voltage - Output [Min] | 2 V |
LDD-500 Series
| Part | Package / Case | Dimming | Topology | Approval Agency | Voltage - Input (Min) [Min] | Voltage - Output [Max] | Voltage - Output [Min] | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Efficiency | Voltage - Input (Max) [Max] | Features | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Number of Outputs | Package / Case | Ratings | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | 24-SMD Module 18 Leads | PWM | Buck | CE | 9 V | 52 V | 2 V | Constant Current | 0.8 in | 1.25 " | 0.45 " | 11.4 mm | 31.8 mm | 20.3 mm | 96 % | 56 V | OTP Remote On/Off SCP | Surface Mount | 85 °C | -40 °C | 500 mA | 1 | |||
MEAN WELL USA Inc. | 24-DIP Module | PWM | Buck | CE | 9 V | 52 V | 2 V | Constant Current | 0.8 in | 1.25 " | 0.48 in | 12.2 mm | 31.8 mm | 20.3 mm | 97 % | 56 V | OTP Remote On/Off SCP | Through Hole | 85 °C | -40 °C | 500 mA | 1 | 9 PC Pad | ||
MEAN WELL USA Inc. | 16-SMD Module | PWM | Buck | CE | 9 V | 28 V | 2 V | Constant Current | 0.41 in | 1 in | 0.37 in | 9.3 mm | 25.4 mm | 10.5 mm | 95 % | 32 V | OTP Remote On/Off SCP | Surface Mount | 85 °C | -40 °C | 500 mA | 1 | |||
MEAN WELL USA Inc. | PWM | Buck | CE | 9 V | 52 V | 2 V | Constant Current | 0.8 in | 1.25 " | 0.48 in | 12.2 mm | 31.8 mm | 20.3 mm | 97 % | 56 V | OTP Remote On/Off SCP | Chassis Mount | 85 °C | -40 °C | 500 mA | 1 | IP67 | Wire Leads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 11.10 | |
Description
General part information
LDD-500 Series
500mA 2 ~ 52V Constant Current LED Driver Buck Topology 1 Output
Documents
Technical documentation and resources
