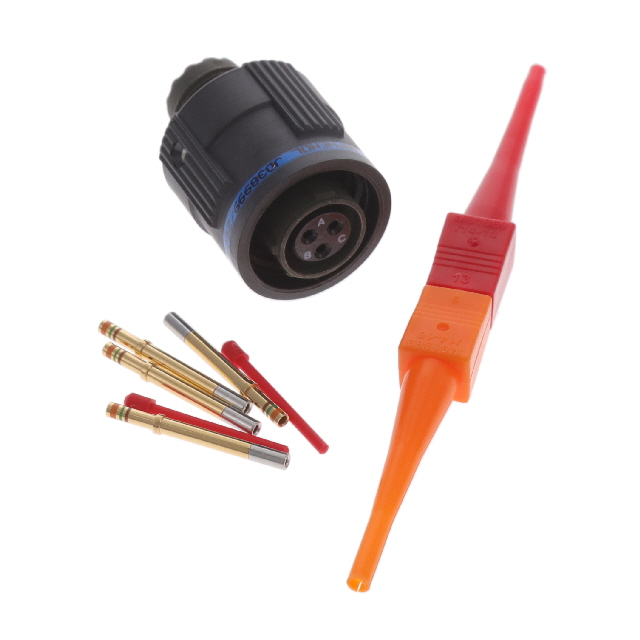

D38999/26JA98SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26JA98SN

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Composite
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Composite
Shell Size - Insert [Max]	98
Shell Size - Insert [Min]	9
Shell Size, MIL	A
Shielding	Shielded
Termination	Crimp

Part	Primary Material	Shell Finish	Termination	Orientation	Contact Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Size, MIL	Qualification	Contact Finish - Mating	Grade	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Color	Connector Type	Ingress Protection	Applications	Features
Amphenol Aerospace Operations D38999/26JA98HA	Composite	Olive Drab Cadmium	Crimp	A	Copper Alloy	98	9	A	MIL-DTL-38999 Series III	Gold	Military	2.54 çm	100 çin	Composite	Shielded	-65 ░C	347 °F	Free Hanging (In-Line)	Olive Drab	Male Pins Plug	Environment Resistant	Aerospace Aviation Military	Coupling Nut
Amphenol Aerospace Operations D38999/26JA98JA	Composite	Olive Drab Cadmium	Crimp	A	Copper Alloy	98	9	A	MIL-DTL-38999 Series III	Gold	Military	2.54 çm	100 çin	Composite	Shielded	-65 ░C	347 °F	Free Hanging (In-Line)	Olive Drab	Female Sockets Plug	Environment Resistant	Aerospace Aviation Military	Coupling Nut
Amphenol Aerospace Operations D38999/26JA98SN	Composite	Olive Drab Cadmium	Crimp	N	Copper Alloy	98	9	A	MIL-DTL-38999 Series III	Gold	Military	1.27 µm	50 µin	Composite	Shielded	-65 ░C	347 °F	Free Hanging (In-Line)	Olive Drab	Female Sockets Plug	Environment Resistant	Aerospace Aviation Marine Military	Coupling Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Crimp
