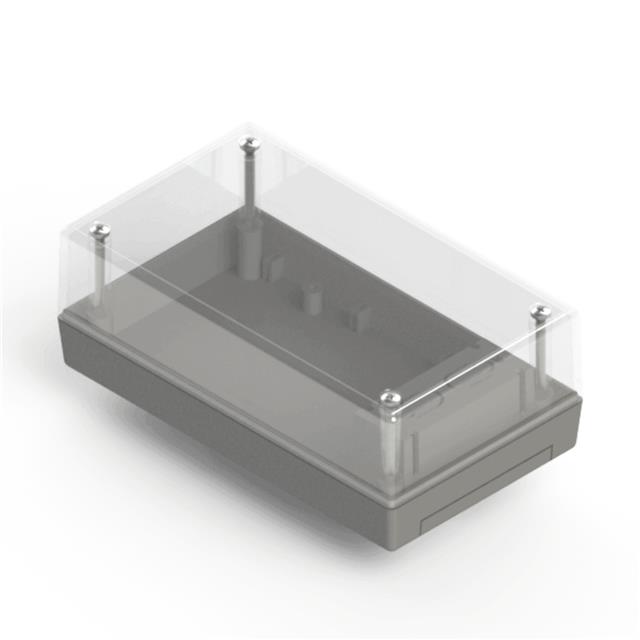

252RC,GY

Active

Serpac

BOX PLASTIC 5.62"L X 3.25"W

Deep-Dive with AI

Search across all available documentation for this part.

Documents252

252RC,GY

Active

Serpac

BOX PLASTIC 5.62"L X 3.25"W

Deep-Dive with AI

Documents252

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	252RC,GY

Area (L x W)	18.3 in²
Area (L x W)	118 cm²
Color	Gray, Clear Cover/Door
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports, Battery Compartment, Front Access, 9V
Height [z]	50.8 mm
Height [z]	2 in
Material	Plastic, Polycarbonate
Ratings	IP40, NEMA 1
Size / Dimension [x]	142.75 mm
Size / Dimension [x]	5.62 in
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	131.1 g
Weight	0.289 lb

252R Series

Part	Container Type	Material	Weight	Weight	Area (L x W)	Area (L x W)	Thickness	Thickness	Design	Ratings	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Features	Material Flammability Rating	Color
Serpac 252RI,AL	Box	Plastic ABS	131.1 g	0.289 lb	18.3 in²	118 cm²	2.54 mm	0.1 in	Hand Held Split Sides	IP40 NEMA 1	50.8 mm	2 in	3.25 "	142.75 mm	82.55 mm	5.62 in	9V Battery Compartment Front Access PCB Supports	UL94 HB	Almond
Serpac 252RC,BK	Box	Plastic Polycarbonate	131.1 g	0.289 lb	18.3 in²	118 cm²	2.54 mm	0.1 in	Hand Held Split Sides	IP40 NEMA 1	50.8 mm	2 in	3.25 "	142.75 mm	82.55 mm	5.62 in	9V Battery Compartment Front Access PCB Supports		Black Clear Cover/Door
Serpac 252R,AL	Box	Plastic ABS	131.1 g	0.289 lb	18.3 in²	118 cm²	2.54 mm	0.1 in	Hand Held Split Sides	IP40 NEMA 1	50.8 mm	2 in	3.25 "	142.75 mm	82.55 mm	5.62 in	9V Battery Compartment Front Access PCB Supports	UL94 HB	Almond
Serpac 252RI,BK	Box	Plastic ABS	131.1 g	0.289 lb	18.3 in²	118 cm²	2.54 mm	0.1 in	Hand Held Split Sides	IP40 NEMA 1	50.8 mm	2 in	3.25 "	142.75 mm	82.55 mm	5.62 in	9V Battery Compartment Front Access PCB Supports	UL94 HB	Black
Serpac 252RC,GY	Box	Plastic Polycarbonate	131.1 g	0.289 lb	18.3 in²	118 cm²	2.54 mm	0.1 in	Hand Held Split Sides	IP40 NEMA 1	50.8 mm	2 in	3.25 "	142.75 mm	82.55 mm	5.62 in	9V Battery Compartment Front Access PCB Supports		Clear Cover/Door Gray
Serpac 252R,BK	Box	Plastic ABS	131.1 g	0.289 lb	18.3 in²	118 cm²	2.54 mm	0.1 in	Hand Held Split Sides	IP40 NEMA 1	50.8 mm	2 in	3.25 "	142.75 mm	82.55 mm	5.62 in	9V Battery Compartment Front Access PCB Supports	UL94 HB	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.55

Description

General part information

252R Series

Box Plastic, Polycarbonate Gray, Clear Cover/Door Hand Held, Split Sides 5.620" L x 3.250" W (142.75mm x 82.55mm) X 2.000" (50.80mm)

Documents

Technical documentation and resources

252

Datasheet
