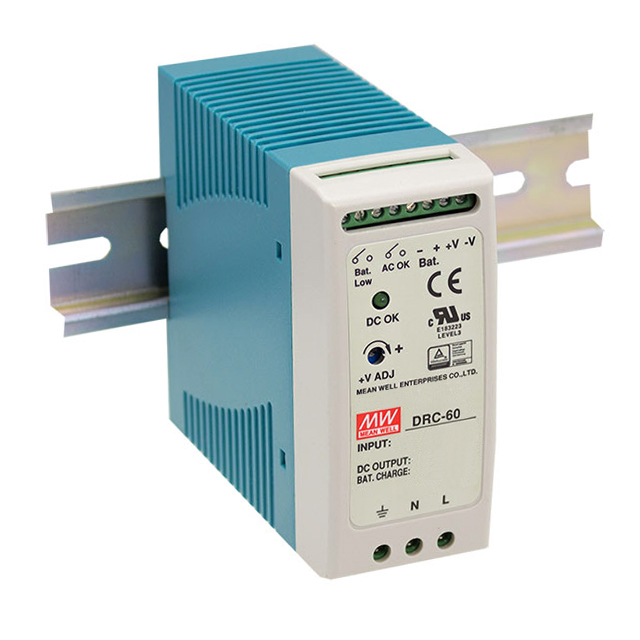

DRC-60A

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUP 2X13.8V 59W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUP 2X13.8V 59W

Technical Specifications

Parameters and characteristics for this part

Specification	DRC-60A

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	90 VAC
Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output (Max)	2.8 A, 1.5 A
DC Voltage - Input (Max) [Max]	370 V
DC Voltage - Input (Min) [Min]	127 V
Efficiency	86 %
Features	Adjustable Output, Universal Input
Input Type	AC or DC
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	59 W
Size / Dimension [x]	100 mm
Size / Dimension [x]	3.94 in
Size / Dimension [y]	1.57 "
Size / Dimension [y]	40 mm
Size / Dimension [z]	90 mm
Size / Dimension [z]	3.54 "
Voltage - Isolation	3000 V
Voltage - Output 1	13.8 V
Voltage - Output 2	13.8 V

Part	Approval Agency	Efficiency	Voltage - Output 1	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max)	Features	Voltage - Output 2	Power (Watts)	Number of Outputs	Input Type	AC Voltage - Input [Min]	AC Voltage - Input [Max]
MEAN WELL USA Inc. DRC-60A	CB CE cURus TUV	86 %	13.8 V	127 V	370 V	70 °C	-30 °C	ITE (Commercial)	3000 V	90 mm	100 mm	3.94 in	1.57 "	40 mm	3.54 "	1.5 A 2.8 A	Adjustable Output Universal Input	13.8 V	59 W	2	AC or DC	90 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUP 2X13.8V 59W
