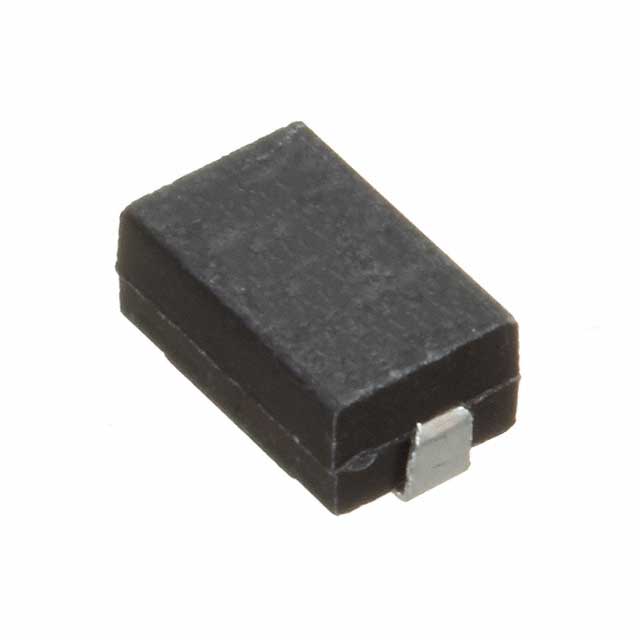

SL1R022JT

Obsolete

TE Connectivity Passive Product

RES 0.022 OHM 5% 1W 2615

Search across all available documentation for this part.

Documents1624254

Obsolete

TE Connectivity Passive Product

RES 0.022 OHM 5% 1W 2615

Documents1624254

Technical Specifications

Parameters and characteristics for this part

Specification	SL1R022JT

Features	Moisture Resistant, Current Sense
Height - Seated (Max) [Max] [z]	2.84 mm
Height - Seated (Max) [Max] [z]	0.112 in
Number of Terminations	2
Package / Case	J-Lead, 2615 (6538 Metric)
Power (Watts)	1 W
Resistance	22 mOhms
Size / Dimension [x]	0.255 in
Size / Dimension [x]	6.48 mm
Size / Dimension [y]	0.15 "
Size / Dimension [y]	3.81 mm
Supplier Device Package	SMD
Temperature Coefficient	100 ppm/°C
Tolerance	5 %

Part	Number of Terminations	Tolerance	Package / Case	Power (Watts)	Supplier Device Package	Features	Resistance	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
TE Connectivity Passive Product SL1R082JT
TE Connectivity Passive Product SL1R068JT	2	5 %	2615 (6538 Metric) J-Lead	1 W	SMD	Current Sense Moisture Resistant	68 mOhms	100 ppm/°C	0.15 "	3.81 mm	0.255 in	6.48 mm	2.84 mm	0.112 in
TE Connectivity Passive Product SL1R01J	2	5 %	2615 (6538 Metric) J-Lead	1 W	SMD	Current Sense Moisture Resistant	10 mOhms	100 ppm/°C	0.15 "	3.81 mm	0.255 in	6.48 mm	2.84 mm	0.112 in
TE Connectivity Passive Product SL1R02F	2	1 %	2615 (6538 Metric) J-Lead	1 W	SMD	Current Sense Moisture Resistant	0.02 Ohms	100 ppm/°C	0.15 "	3.81 mm	0.255 in	6.48 mm	2.84 mm	0.112 in
TE Connectivity Passive Product SL1R051JT	2	5 %	2615 (6538 Metric) J-Lead	1 W	SMD	Current Sense Moisture Resistant		100 ppm/°C	0.15 "	3.81 mm	0.255 in	6.48 mm	2.84 mm	0.112 in
TE Connectivity Passive Product SL1R022JT	2	5 %	2615 (6538 Metric) J-Lead	1 W	SMD	Current Sense Moisture Resistant	22 mOhms	100 ppm/°C	0.15 "	3.81 mm	0.255 in	6.48 mm	2.84 mm	0.112 in
TE Connectivity Passive Product SL1R03FT	2	1 %	2615 (6538 Metric) J-Lead	1 W	SMD	Current Sense Moisture Resistant	0.03 Ohms	100 ppm/°C	0.15 "	3.81 mm	0.255 in	6.48 mm	2.84 mm	0.112 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22 mOhms ±5% 1W Chip Resistor 2615 (6538 Metric), J-Lead Current Sense, Moisture Resistant Metal Foil
