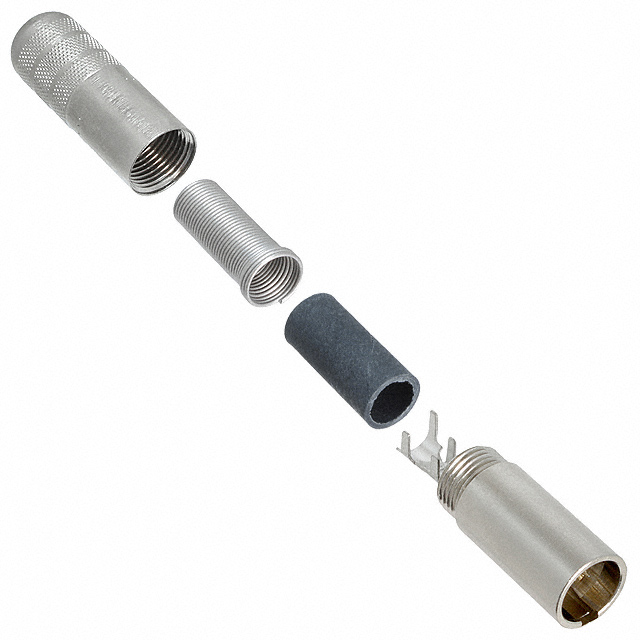

TA8MSHF

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 8P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 8P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	TA8MSHF

Applications	Audio, Medical
Backshell Material, Plating	Copper Alloy, Nickel
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Shielding	Shielded
Voltage Rating	125 VAC

Part	Fastening Type	Connector Type	Shell Size - Insert	Mounting Type	Applications	Contact Material	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Voltage Rating	Material Flammability Rating	Features	Shell Finish	Insert Material	Shell Material	Current Rating (Amps)	Backshell Material, Plating	Shielding	Contact Finish - Mating	Number of Positions	Color
Switchcraft Inc. TA8MSHF	Latch Lock	Male Pins Receptacle	Mini XLR	Free Hanging (In-Line)	Audio Medical	Copper Alloy	Keyed	85 °C	-55 °C	Metal	125 VAC	UL94 V-0	Backshell Cable Clamp Ground Strain Relief	Nickel	Thermoplastic	Copper Alloy	1.5 A	Copper Alloy Nickel	Shielded	Silver	8	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 13.41

General part information

8 Position Circular Connector Receptacle, Male Pins Solder Cup
