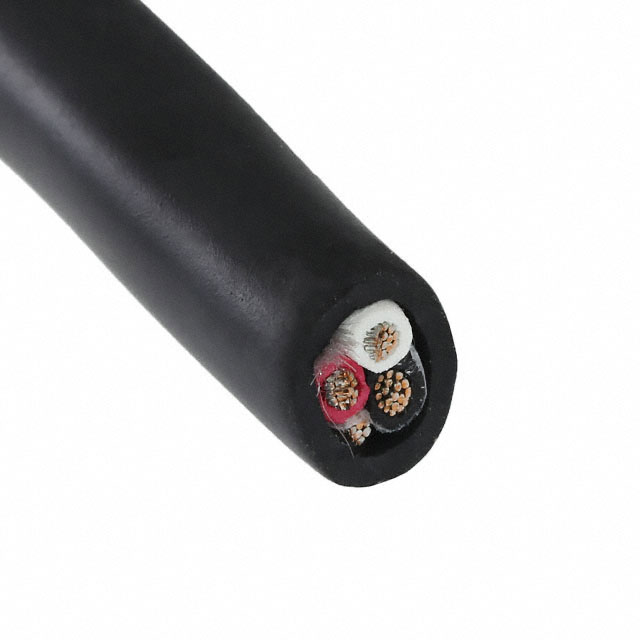

25463 BK199

Active

ALPHA WIRE

CABLE 3COND 20AWG BLK SHLD FEET

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 20AWG BLK SHLD FEET

Technical Specifications

Parameters and characteristics for this part

Specification	25463 BK199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	5.66 mm
Jacket (Insulation) Diameter [diameter]	0.223 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length	Enter Number of Feet in Order Quantity
Number of Conductors	3
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Spool Size	1000 ft
Spool Size	304.8 m
Voltage	300 V
Wire Gauge	20 AWG

Part	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Conductor Material	Voltage	Wire Gauge	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Shield Material	Spool Size	Spool Size	Shield Type	Number of Conductors	Length	Jacket (Insulation) Material	Features
ALPHA WIRE 25463 BK199	Black	28	7	ISO 10993 UL Style 20668	-30 ░C	90 °C	Multi-Conductor	Copper Tinned	300 V	20 AWG	100 %	5.66 mm	0.223 in	Poly-Vinyl Chloride (PVC)	Aluminum	1000 ft	304.8 m	Foil	3	Enter Number of Feet in Order Quantity	Polyurethane (PU)	Biological Compatibility Drain Wire Rip Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Black 20 AWG Foil Enter Number of Feet in Order Quantity
