887-018-521-803
ActiveEDAC Inc.

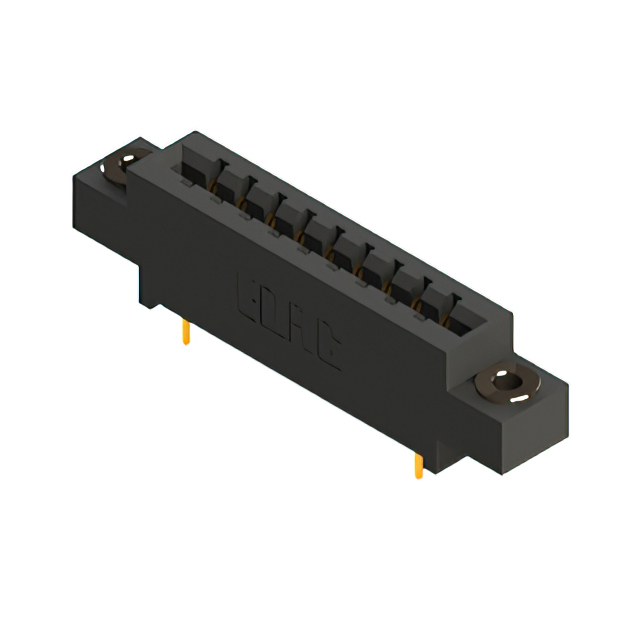

CONN EDGE DUAL FMALE 18POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
887-018-521-803
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 18POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 887-018-521-803 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 18 |
| Number of Positions/Bay/Row [custom] | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
887-018 Series
...
| Part | Termination | Number of Rows | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Mounting Type | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Contact Type | Material - Insulation | Flange Feature | Contact Finish | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Gender | Termination Rows | Read Out | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Wire Wrap | 2 | Non Specified - Dual Edge | 125 °C | -40 °C | Copper Alloy | Through Hole | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Cantilever | Polyphenylene Sulfide (PPS) | 4-40 Threaded Insert Top Mount Opening | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 9 | Female | 2 | Dual | ||||
EDAC Inc. | Wire Wrap | 1 | Non Specified - Single Edge | 125 °C | -40 °C | Copper Alloy | Through Hole | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Cantilever | Polyphenylene Sulfide (PPS) | Flush Mount Side Opening Unthreaded | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 18 | Female | 1 | Single | 3.25 mm | 0.128 " | ||
EDAC Inc. | Wire Wrap | 1 | Non Specified - Single Edge | 125 °C | -40 °C | Copper Alloy | Through Hole | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Cantilever | Polyphenylene Sulfide (PPS) | Floating Bobbin Top Mount Opening | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 18 | Female | 1 | Single | 2.95 mm | 0.116 in | ||
EDAC Inc. | Solder | 1 | Non Specified - Single Edge | 125 °C | -40 °C | Copper Alloy | Through Hole | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Cantilever | Polyphenylene Sulfide (PPS) | Flush Mount M3 Threaded Insert Top Opening | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 18 | Female | 1 | Single | ||||
EDAC Inc. | Solder | 1 | Non Specified - Single Edge | 125 °C | -40 °C | Copper Alloy | Through Hole | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Cantilever | Polyphenylene Sulfide (PPS) | Flush Mount Top Opening Unthreaded | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 18 | Female | 1 | Single | 3.96 mm | 0.156 in | ||
EDAC Inc. | Solder | 2 | Non Specified - Dual Edge | 125 °C | -40 °C | Copper Alloy | Through Hole | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Cantilever | Polyphenylene Sulfide (PPS) | Floating Bobbin Top Mount Opening | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 9 | Female | 2 | Dual | 2.95 mm | 0.116 in | ||
EDAC Inc. | Solder | 2 | Non Specified - Dual Edge | 125 °C | -40 °C | Copper Alloy | Through Hole | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Cantilever | Polyphenylene Sulfide (PPS) | Floating Bobbin Flush Mount | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 9 | Female | 2 | Dual | 2.95 mm | 0.116 in | ||
EDAC Inc. | Solder | 1 | Non Specified - Single Edge | 125 °C | -40 °C | Copper Alloy | Through Hole | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Cantilever | Polyphenylene Sulfide (PPS) | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 18 | Female | 1 | Single | 3.25 mm | 0.128 in | |||
EDAC Inc. | Solder | 2 | Non Specified - Dual Edge | 125 °C | -40 °C | Copper Alloy | Through Hole | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Cantilever | Polyphenylene Sulfide (PPS) | 4-40 Threaded Insert Top Mount Opening | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 9 | Female | 2 | Dual | ||||
EDAC Inc. | Wire Wrap | 2 | Non Specified - Dual Edge | 125 °C | -40 °C | Copper Alloy | Through Hole | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Cantilever | Polyphenylene Sulfide (PPS) | M3 Threaded Insert Top Mount Opening | Gold | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 9 | Female | 2 | Dual |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 63.18 | |
Description
General part information
887-018 Series
18 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
