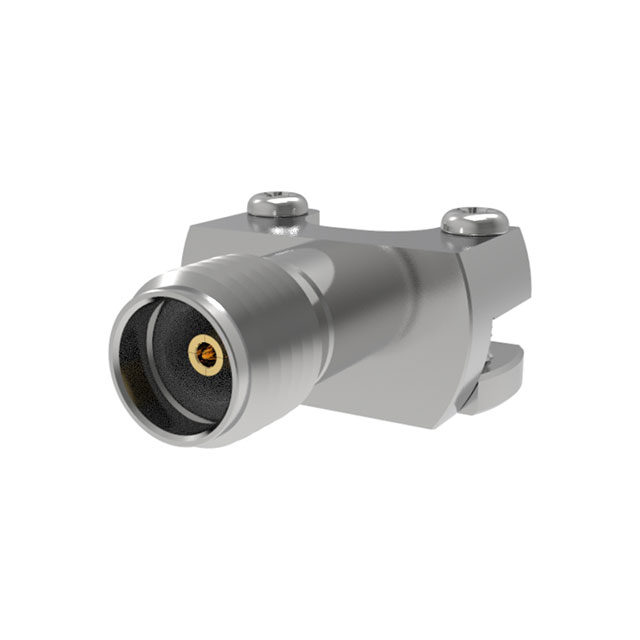

TMB-E5F2-1L1

Active

CarlisleIT

3.5(F)2-H,EL,FIELDREP

Search across all available documentation for this part.

Active

CarlisleIT

3.5(F)2-H,EL,FIELDREP

Technical Specifications

Parameters and characteristics for this part

Specification	TMB-E5F2-1L1

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	3.5 mm
Connector Type	Female Socket, Jack
Contact Termination	Compression
Features	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	34 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw
Voltage Rating	400 V

Part	Insertion Loss	Mounting Type	Connector Type	Shield Termination	Number of Ports	Mating Cycles	Frequency - Max [Max]	Impedance	Contact Termination	Center Contact Material	Housing Color	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Connector Style	Body Finish	Center Contact Plating	Features
CarlisleIT TMB-E5FS-1S1	0.6 dB	Board Edge End Launch	Female Socket Jack	Solder	1	500	34 GHz	50 Ohms	Solder	Beryllium Copper	Gold	Brass	-65 ░C	165 °C	400 V	3.5 mm	Gold	Gold
CarlisleIT TMB-E5FS-1S1	0.6 dB	Board Edge End Launch	Female Socket Jack	Solder	1	500	34 GHz	50 Ohms	Solder	Beryllium Copper	Gold	Brass	-65 ░C	165 °C	400 V	3.5 mm	Gold	Gold
CarlisleIT TMB-E5F2-1L1	0.2 dB	Board Edge End Launch	Female Socket Jack	Screw	1	500	34 GHz	50 Ohms	Compression	Beryllium Copper	Silver	Stainless Steel	-65 ░C	165 °C	400 V	3.5 mm		Gold	Field Replaceable For Hermetically Sealed Pin
