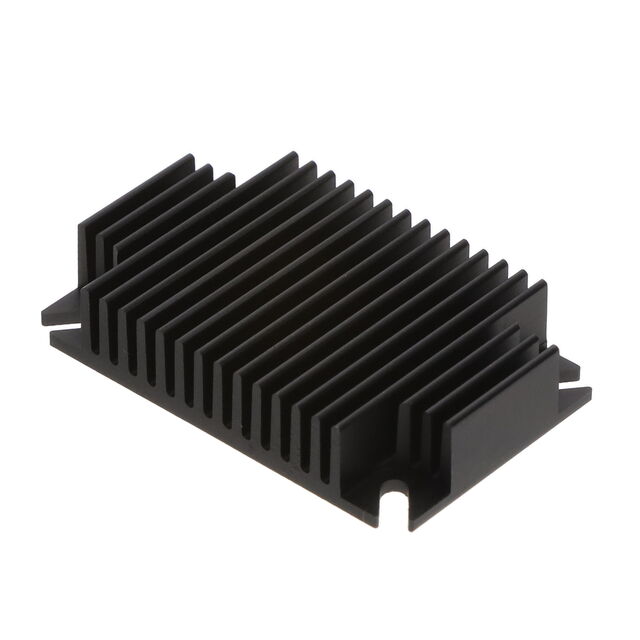

547-45AB

Active

Wakefield-Vette

HEATSINK DC/DC QUARTER BRICK

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK DC/DC QUARTER BRICK

Technical Specifications

Parameters and characteristics for this part

Specification	547-45AB

Attachment Method	Thermal Material, Bolt On
Fin Height	11.43 mm
Fin Height	0.45 in
Length	1.45 in
Length	36.83 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	Quarter Brick DC/DC Converter
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	2.1 °C/W, 300 LFM
Type	Board Level, Vertical
Width [x]	2.28 in
Width [x]	57.91 mm

Part	Material	Shape	Thermal Resistance @ Forced Air Flow	Material Finish	Fin Height	Fin Height	Length	Length	Attachment Method	Width [x]	Width [x]	Package Cooled	Type
Wakefield-Vette 547-45AB-ME	Aluminum	Rectangular Fins	2.1 °C/W 300 LFM	Black Anodized	11.43 mm	0.45 in	1.45 in	36.83 mm	Bolt On Thermal Material	2.28 in	57.91 mm	Quarter Brick DC/DC Converter	Board Level Vertical
Wakefield-Vette 547-45AB-T725	Aluminum	Rectangular Fins	2.1 °C/W 300 LFM	Black Anodized	11.43 mm	0.45 in	1.45 in	36.83 mm	Bolt On Thermal Material	2.28 in	57.91 mm	Quarter Brick DC/DC Converter	Board Level Vertical
Wakefield-Vette 547-45AB-MET725	Aluminum	Rectangular Fins	2.1 °C/W 300 LFM	Black Anodized	11.43 mm	0.45 in	1.45 in	36.83 mm	Bolt On Thermal Material	2.28 in	57.91 mm	Quarter Brick DC/DC Converter	Board Level Vertical
Wakefield-Vette 547-45AB	Aluminum	Rectangular Fins	2.1 °C/W 300 LFM	Black Anodized	11.43 mm	0.45 in	1.45 in	36.83 mm	Bolt On Thermal Material	2.28 in	57.91 mm	Quarter Brick DC/DC Converter	Board Level Vertical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink Quarter Brick DC/DC Converter Aluminum Board Level, Vertical
