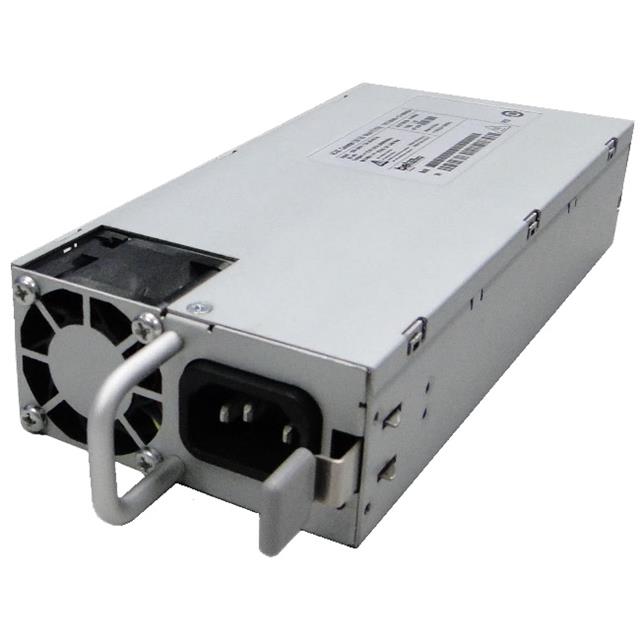

TET2000-12-086NA

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 2028W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 2028W

Technical Specifications

Parameters and characteristics for this part

Specification	TET2000-12-086NA

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	169 A
Efficiency	95.3 %
Features	Remote Sensing, PMBus™, Universal Input, I2C Interface, PFC, Hot Swappable, Remote On/Off, Standby Output, Load Sharing
Mounting Type	Rack Mount
Number of Outputs	1
Power (Watts)	2028 W
Size / Dimension [x]	7.68 "
Size / Dimension [x]	195 mm
Size / Dimension [y]	3.39 in
Size / Dimension [y]	86 mm
Size / Dimension [z]	1.57 "
Size / Dimension [z]	40 mm
Type	Front End
Voltage - Input [Max]	264 VAC, 300 VDC
Voltage - Input [Min]	90 VAC, 180 V
Voltage - Isolation	4.3 kV
Voltage - Output 1	12 V

Part	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Power (Watts)	Voltage - Isolation	Number of Outputs	Approval Agency	Mounting Type	Type	Applications	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features	Current - Output 1
EOS Power India Private Ltd TET2000-12-086NA	264 VAC 300 VDC	90 VAC 180 V	95.3 %	2028 W	4.3 kV	1	CE	Rack Mount	Front End	ITE (Commercial)	12 V	1.57 "	7.68 "	3.39 in	86 mm	195 mm	40 mm	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sensing Standby Output Universal Input	169 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 512.50

General part information

Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC, 180 ~ 300 VDC Input
