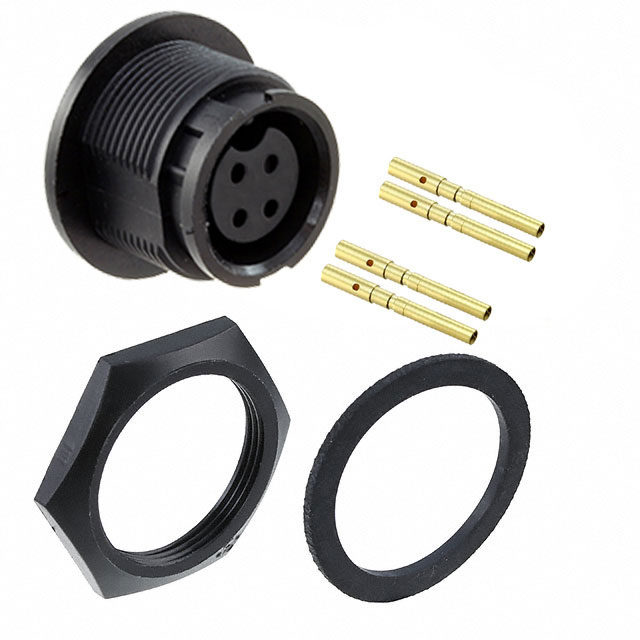

4380-4SG-300 - 4280-4SG-300

4380-4SG-300

Active
Conxall/Switchcraft

CONN RCPT FMALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetMulti-Con-X Sealed Connectors and Cables
4380-4SG-300 - 4280-4SG-300

4380-4SG-300

Active
Conxall/Switchcraft

CONN RCPT FMALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheetMulti-Con-X Sealed Connectors and Cables

Technical Specifications

Parameters and characteristics for this part

Specification4380-4SG-300
ColorBlack
Connector TypeReceptacle, Female Sockets
Contact Finish - MatingGold
Contact MaterialBrass
Fastening TypeBayonet Lock
Ingress ProtectionWeathertight
Mounting FeatureBulkhead - Front Side Nut
Number of Positions4
Operating Temperature [Max]115 °C
Operating Temperature [Min]-40 °C
OrientationKeyed
Primary MaterialPlastic
ShieldingUnshielded
TerminationCrimp
Voltage Rating600 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 100$ 7.64

Description

General part information

4380-4SG Series

4 Position Circular Connector Receptacle, Female Sockets Crimp
