P2X8C4M64P

Active

Parallax Inc.

IC MCU 32BIT 544KB RAM 100TQFP

Search across all available documentation for this part.

Active

Parallax Inc.

IC MCU 32BIT 544KB RAM 100TQFP

Technical Specifications

Parameters and characteristics for this part

Specification	P2X8C4M64P

Connectivity	QSPI/QSSI, HDTV, SmartIO, VGA, HDMI, HUB75, UART/USART, SCI/SPI, 1-Wire, SD CARD, CANbus, RS485, I2C, USB 2.0 HOST/SLAVE
Core Processor	P2X8C4M64P
Core Size [custom]	8-Core
Core Size [custom]	32-Bit
Data Converters	D/A 64 x 16-bit, A/D 64 x 14-bit
Mounting Type	Surface Mount
Number of I/O	64
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	External, Internal
Package / Case	100-TQFP Exposed Pad
Peripherals	DAC, VIDEO, SCOPE, COUNTER, PWM, EVENT, QUADRATURE DECODE, COMPARATOR, MATH, PRNG, GOERTZEL, SmartIO, CORDIC, ADC
Program Memory Size	544 KB
Program Memory Type	RAM
RAM Size	544 KB
Speed	180 MHz
Voltage - Supply (Vcc/Vdd)	1.8 V, 3.3 V

Part	Core Processor	RAM Size	Mounting Type	Program Memory Size	Number of I/O	Program Memory Type	Peripherals	Speed	Connectivity	Core Size [custom]	Core Size [custom]	Data Converters	Package / Case	Voltage - Supply (Vcc/Vdd)	Oscillator Type	Operating Temperature [Max]	Operating Temperature [Min]
Parallax Inc. P2X8C4M64P	P2X8C4M64P	544 KB	Surface Mount	544 KB	64	RAM	ADC COMPARATOR CORDIC COUNTER DAC EVENT GOERTZEL MATH PRNG PWM QUADRATURE DECODE SCOPE SmartIO VIDEO	180 MHz	1-Wire CANbus HDMI HDTV HUB75 I2C QSPI/QSSI RS485 SCI/SPI SD CARD SmartIO UART/USART USB 2.0 HOST/SLAVE VGA	8-Core	32-Bit	A/D 64 x 14-bit D/A 64 x 16-bit	100-TQFP Exposed Pad	1.8 V 3.3 V	External Internal	105 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 22.44

General part information

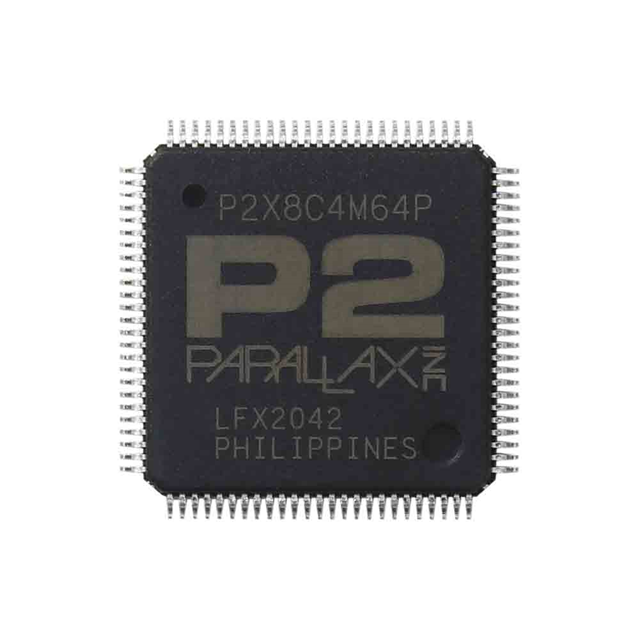

P2X8C4M64P Propeller™ Microcontroller IC 32-Bit 8-Core 180MHz 544KB (544K x 8) RAM 100-TQFP-EP (14x14)
