TR9CG2400CCPCIMR6B
ActiveGlobTek, Inc.

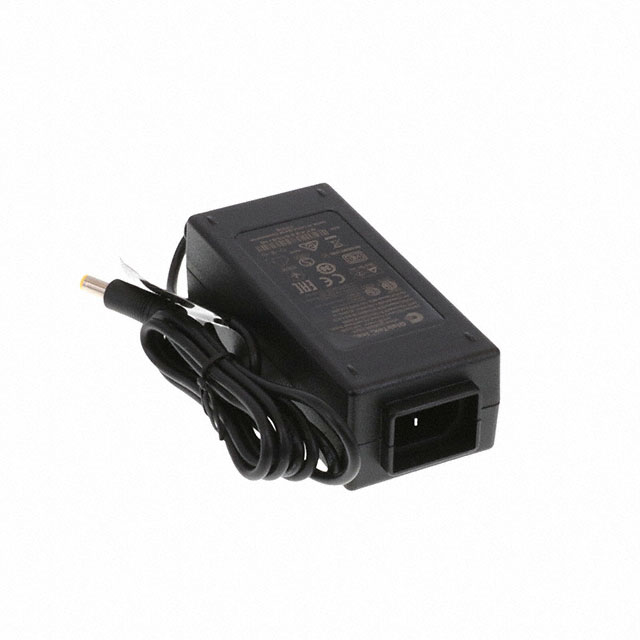

AC/DC DESKTOP ADAPTER 15V 36W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TR9CG2400CCPCIMR6B
ActiveGlobTek, Inc.
AC/DC DESKTOP ADAPTER 15V 36W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TR9CG2400CCPCIMR6B |
|---|---|
| Applications | Household Appliances, ITE (Commercial), Medical |
| Approval Agency | CB, S-Mark, VCCI, LPS, CCC, CE, PSE, UKRSepro, RCM, EAC, ETL |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 2.4 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 36 W |
| Region Utilized | International |
| Size / Dimension [x] | 4.22 in |
| Size / Dimension [x] | 107.2 mm |
| Size / Dimension [y] | 50 mm |
| Size / Dimension [y] | 1.97 " |
| Size / Dimension [z] | 35.5 mm |
| Size / Dimension [z] | 1.4 " |
| Standard Number | 1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 15 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.07 | |
| 5 | $ 16.62 | |||
| 10 | $ 16.03 | |||
| 48 | $ 14.77 | |||
| 96 | $ 14.25 | |||
| 144 | $ 13.95 | |||
| 288 | $ 13.45 | |||
| 528 | $ 13.04 | |||
Description
General part information
TR9CG2400 Series
15V 36 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
