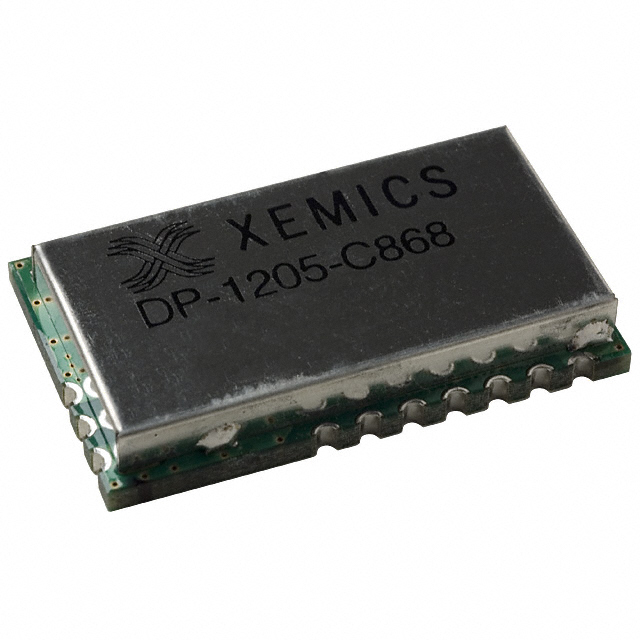

DP1205C868

Obsolete

Semtech Corporation

RF TXRX MOD ISM<1GHZSMD

Search across all available documentation for this part.

Obsolete

Semtech Corporation

RF TXRX MOD ISM<1GHZSMD

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Frequency	Data Rate	Power - Output	Current - Transmitting [Max]	Current - Transmitting [Min]	Mounting Type	Sensitivity	Antenna Type	RF Family/Standard	Utilized IC / Part	Serial Interfaces	Current - Receiving
Semtech Corporation DP1205C868LF	85 °C	-40 °C	2.4 V	3.6 V	Module	868 MHz	152.3 kbps	15 dBm	62 mA	33 mA	Surface Mount	-118 dBm	Antenna Not Included	General ISM < 1GHz	XE1205	SPI	14 mA
Semtech Corporation DP1205C868	85 °C	-40 °C	2.4 V	3.6 V	Module	868 MHz	152.3 kbps	15 dBm	62 mA	33 mA	Surface Mount	-118 dBm	Antenna Not Included	General ISM < 1GHz	XE1205	SPI	14 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General ISM < 1GHz Transceiver Module 868MHz Antenna Not Included Surface Mount

Technical documentation and resources

No documents available
