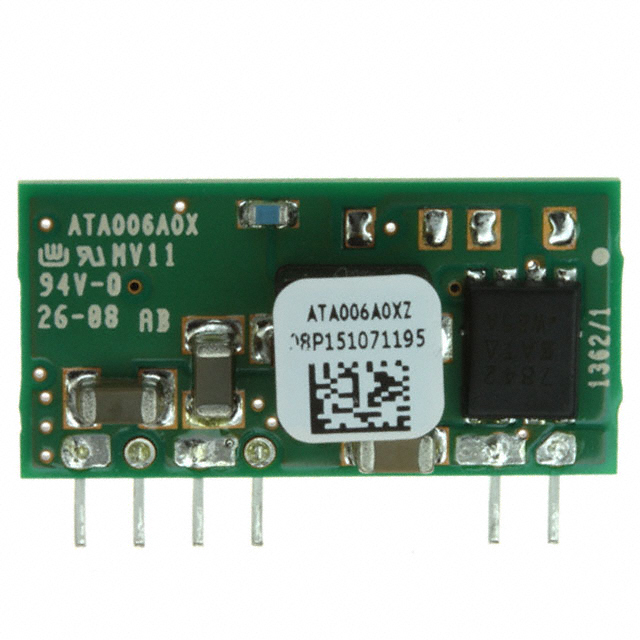

ATA006A0XZ
ActiveOmniOn Power™
DC DC CONVERTER 0.8-5.5V 33W
Deep-Dive with AI
Search across all available documentation for this part.
ATA006A0XZ
ActiveOmniOn Power™
DC DC CONVERTER 0.8-5.5V 33W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATA006A0XZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | 89 % |
| Features | Remote On/Off, UVLO, OCP, OTP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SIP Module |
| Power (Watts) | 33 W |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [x] | 1 in |
| Size / Dimension [y] | 6.7 mm |
| Size / Dimension [y] | 0.26 " |
| Size / Dimension [z] | 12.7 mm |
| Size / Dimension [z] | 0.5 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 8.3 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.37 | |
| 96 | $ 11.34 | |||
Description
General part information
ATA006 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 5.5V 6A 8.3V - 14V Input
Documents
Technical documentation and resources
No documents available
