325221-08-0

Active

Curtis Industries

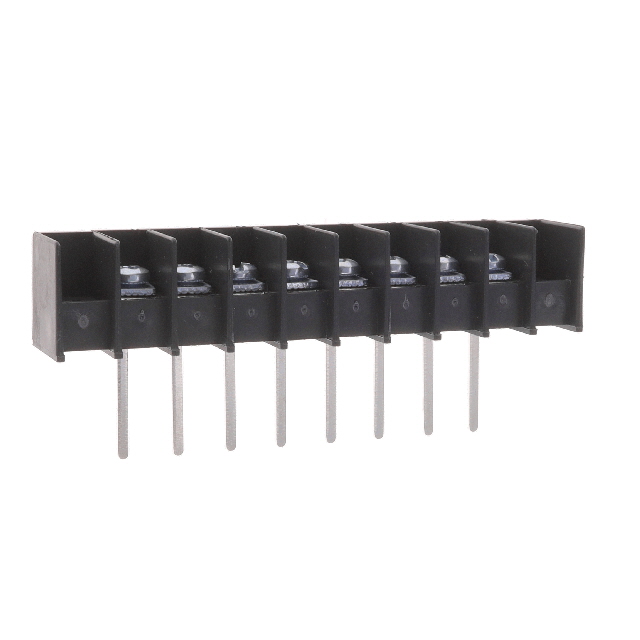

CONN BARRIER STRIP 8CIRC 0.325"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTerminal Blocks Catalog Datasheet

325221-08-0

Active

Curtis Industries

CONN BARRIER STRIP 8CIRC 0.325"

Deep-Dive with AI

DocumentsTerminal Blocks Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325221-08-0

Barrier Type	3 Wall (Tri)
Bottom Termination	Wire Wrap
Current Rating (Amps)	15 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole
Number of Circuits [custom]	8
Number of Rows	1
Number of Wire Entries	8
Operating Temperature	105 C
Pitch [x]	8.26 mm
Pitch [x]	0.325 in
Terminal Block Type	Barrier Block
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

325221 Series

Part	Wire Gauge [Min]	Wire Gauge [Max]	Features	Material - Insulation	Bottom Termination	Current Rating (Amps)	Pitch [x]	Pitch [x]	Terminal Block Type	Number of Wire Entries	Mounting Type	Top Termination	Material Flammability Rating	Operating Temperature	Voltage Rating	Number of Rows	Barrier Type	Number of Circuits	Number of Circuits [custom]
Curtis Industries 325221-18-0	14 AWG	22 AWG	Flange	Polypropylene (PP)	Wire Wrap	15 A	8.26 mm	0.325 in	Barrier Block	18	Chassis Panel Through Hole	Screws	UL94 V-0	105 C	300 VDC	1	3 Wall (Tri)	18
Curtis Industries 325221-20-0	14 AWG	22 AWG	Flange	Polypropylene (PP)	Wire Wrap	15 A	8.26 mm	0.325 in	Barrier Block	20	Chassis Panel Through Hole	Screws	UL94 V-0	105 C	300 VDC	1	3 Wall (Tri)	20
Curtis Industries 325221-06-0	14 AWG	22 AWG	Flange	Polypropylene (PP)	Wire Wrap	15 A	8.26 mm	0.325 in	Barrier Block	6	Chassis Panel Through Hole	Screws	UL94 V-0	105 C	300 VDC	1	3 Wall (Tri)	6
Curtis Industries 325221-21-0	14 AWG	22 AWG	Flange	Polypropylene (PP)	Wire Wrap	15 A	8.26 mm	0.325 in	Barrier Block	21	Chassis Panel Through Hole	Screws	UL94 V-0	105 C	300 VDC	1	3 Wall (Tri)	21
Curtis Industries 325221-11-0	14 AWG	22 AWG	Flange	Polypropylene (PP)	Wire Wrap	15 A	8.26 mm	0.325 in	Barrier Block	11	Chassis Panel Through Hole	Screws	UL94 V-0	105 C	300 VDC	1	3 Wall (Tri)	11
Curtis Industries 325221-03-0	14 AWG	22 AWG	Flange	Polypropylene (PP)	Wire Wrap	15 A	8.26 mm	0.325 in	Barrier Block	3	Chassis Panel Through Hole	Screws	UL94 V-0	105 C	300 VDC	1	3 Wall (Tri)	3
Curtis Industries 325221-12-0	14 AWG	22 AWG	Flange	Polypropylene (PP)	Wire Wrap	15 A	8.26 mm	0.325 in	Barrier Block	12	Chassis Panel Through Hole	Screws	UL94 V-0	105 C	300 VDC	1	3 Wall (Tri)	12
Curtis Industries 325221-13-0	14 AWG	22 AWG	Flange	Polypropylene (PP)	Wire Wrap	15 A	8.26 mm	0.325 in	Barrier Block	13	Chassis Panel Through Hole	Screws	UL94 V-0	105 C	300 VDC	1	3 Wall (Tri)	13
Curtis Industries 325221-04-0	14 AWG	22 AWG	Flange	Polypropylene (PP)	Wire Wrap	15 A	8.26 mm	0.325 in	Barrier Block	4	Chassis Panel Through Hole	Screws	UL94 V-0	105 C	300 VDC	1	3 Wall (Tri)	4
Curtis Industries 325221-08-0	14 AWG	22 AWG	Flange	Polypropylene (PP)	Wire Wrap	15 A	8.26 mm	0.325 in	Barrier Block	8	Chassis Panel Through Hole	Screws	UL94 V-0	105 C	300 VDC	1	3 Wall (Tri)		8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.12
		10	$ 3.14
		30	$ 2.94
		50	$ 2.61
		100	$ 2.56
		250	$ 2.50

Description

General part information

325221 Series

8 Circuit 0.325" (8.26mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Terminal Blocks Catalog

Datasheet
