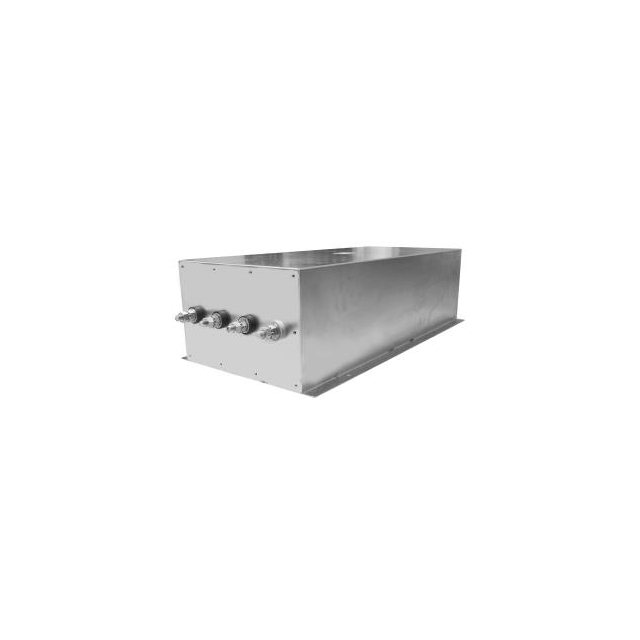

RPTC2004-100

Active

Astrodyne TDI

LINE FILTER 480VAC 100A CHASSIS

Search across all available documentation for this part.

Active

Astrodyne TDI

LINE FILTER 480VAC 100A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Specification	RPTC2004-100

Configuration	Three Stage
Current	100 A
Filter Type	Three Phase (Wye)
Frequency - Operating [Max]	63
Frequency - Operating [Min]	47
Mounting Type	Chassis Mount
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Termination Style	Threaded Post (1/4-20)
Voltage - Rated AC	480 V
Voltage - Rated AC (Phase to Ground/Neutral)	1.5 kV

Part	Voltage - Rated AC (Phase to Ground/Neutral)	Voltage - Rated AC	Configuration	Frequency - Operating [Min]	Frequency - Operating [Max]	Termination Style	Current	Filter Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
Astrodyne TDI RPTC2004-100	1.5 kV	480 V	Three Stage	47	63	Threaded Post (1/4-20)	100 A	Three Phase (Wye)	Chassis Mount	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Wye) EMC/EMI Line Filter 100 A 480V 47/63Hz Three Stage Threaded Post (1/4-20)
