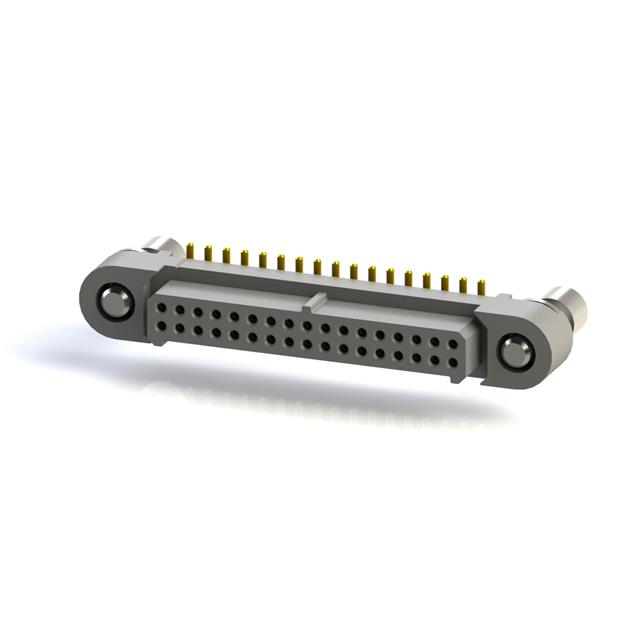

A222T34V16
ActiveNicomatic
FEM. 34POS STRAIGHT SMT 1MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A222T34V16
ActiveNicomatic
FEM. 34POS STRAIGHT SMT 1MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A222T34V16 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 0.15 µm |
| Contact Finish Thickness - Mating | 5.9 µin |
| Contact Finish Thickness - Post | 0.15 µm |
| Contact Finish Thickness - Post | 5.9 µin |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Current Rating (Amps) | 2.5 A |
| Fastening Type | Push-Pull |
| Features | Polarizing Key, Mounting Flange, Jackscrews, Mating Flange |
| Insulation Color | Black |
| Insulation Height [custom] | 0.157 in |
| Insulation Height [custom] | 4 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 34 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Row Spacing - Mating | 0.039 " |
| Row Spacing - Mating | 1 mm |
| Termination | Solder |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 81.04 | |
| 25 | $ 72.95 | |||
| 100 | $ 65.68 | |||
| 500 | $ 59.14 | |||
| 1000 | $ 56.17 | |||
Description
General part information
A222T34V Series
34 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold
