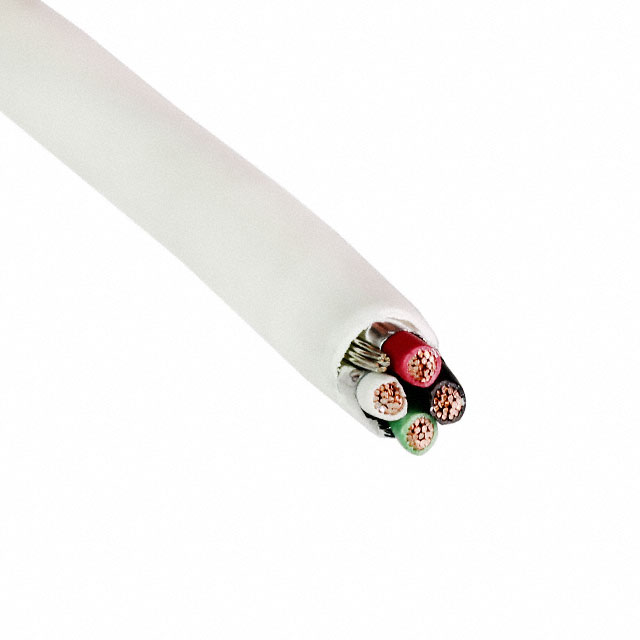

E2244S.41.02

Active

Prysmian Group

CABLE 4COND 16AWG WHITE SHLD

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 4COND 16AWG WHITE SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	E2244S.41.02

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.209 in
Jacket (Insulation) Diameter [diameter]	5.31 mm
Jacket (Insulation) Material	Plenum, Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	16 AWG

Part	Operating Temperature [Max]	Features	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Length	Length	Cable Type	Shield Coverage	Number of Conductors	Voltage	Shield Material	Shield Type	Conductor Material	Jacket (Insulation) Material	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Length [x]	Length [x]	Usage
Prysmian Group E2244S.30.86	75 ░C	Drain Wire	19	0.0117 in	Natural	1000 ft	304.8 m	Multi-Conductor	100 %	4	300 V	Flexfoil®	Foil	Copper Bare	Plenum Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	0.015 in	0.381 mm	0.209 in	5.31 mm	16 AWG
Prysmian Group E2244S.41.86	75 ░C	Drain Wire	19	0.0117 in	Natural	1000 ft	15.24 m 304.8 m	Multi-Conductor	100 %	4	300 V	Flexfoil®	Foil	Copper Bare	Plenum Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	0.015 in	0.381 mm	0.209 in	5.31 mm	16 AWG	30.5 m 152.4 m	50 ft 100 ft 500 '	Alarm Security Sound
Prysmian Group E2244S.41.02	75 ░C	Drain Wire	19	0.0117 in		1000 ft	304.8 m	Multi-Conductor	100 %	4	300 V	Flexfoil®	Foil	Copper Bare	Plenum Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	0.015 in	0.381 mm	0.209 in	5.31 mm	16 AWG			Alarm Security Sound

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	25000	$ 0.55

General part information

4 Conductor Multi-Conductor Cable White 16 AWG Foil 1000.0' (304.8m)
