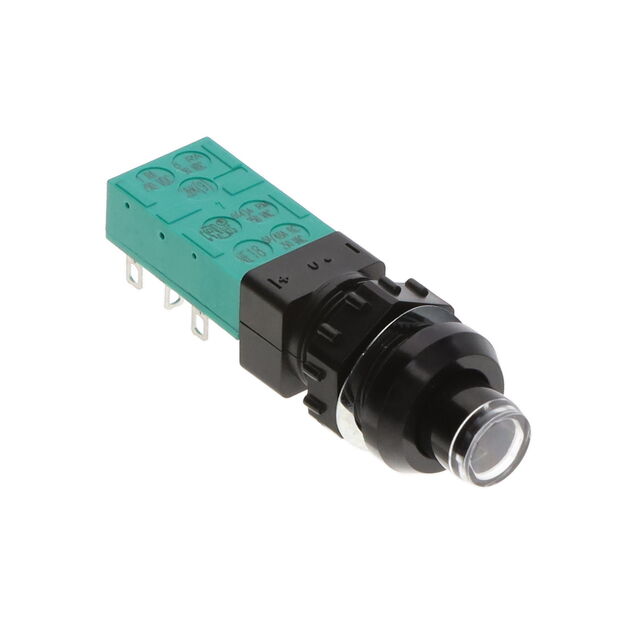

ZNE18 FA200 BK OG 2U EE L - ZNE18 FA200 BK OG 2U EE L

ZNE18 FA200 BK OG 2U EE L

Active
Littelfuse/Commercial Vehicle Products

SWITCH PUSHBUTTON DPDT 6A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
ZNE18 FA200 BK OG 2U EE L - ZNE18 FA200 BK OG 2U EE L

ZNE18 FA200 BK OG 2U EE L

Active
Littelfuse/Commercial Vehicle Products

SWITCH PUSHBUTTON DPDT 6A 250V

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationZNE18 FA200 BK OG 2U EE L
Actuator MarkingNo Marking
Actuator TypeRound, Button
CircuitDPDT
Color - Actuator/CapOrange
Current Rating (Amps)6 A
Electrical Life10000 Cycles
Ingress ProtectionDust Proof
Mounting TypePanel Mount, Right Angle, Rear
Panel Cutout Dimensions [diameter]14 mm
Switch FunctionOn-On
Termination StylePC Pin
TypeStandard
Voltage Rating - AC250 V
Voltage Rating - DC100 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 19.17
10$ 17.41
100$ 15.16

Description

General part information

ZNE18 Series

Pushbutton Switch DPDT Standard Panel Mount, Right Angle, Rear
