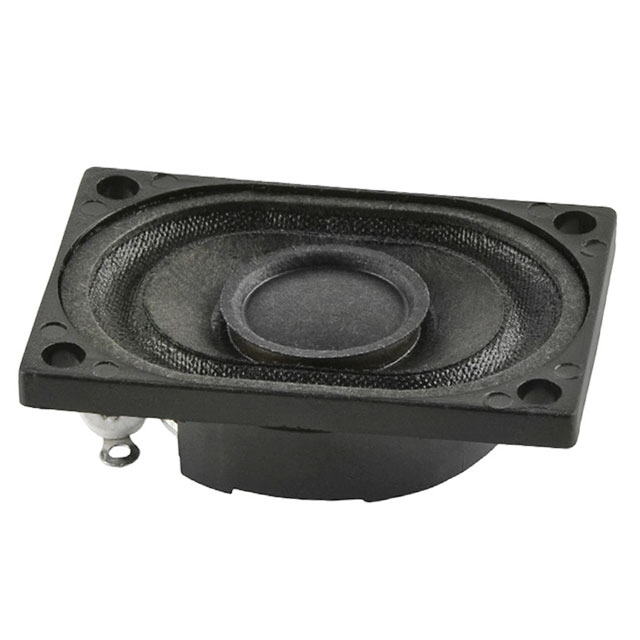

CMS-40288N
ActiveCUI Devices
SPEAKER 8OHM 2W TOP PORT 85DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMS-40288N
ActiveCUI Devices
SPEAKER 8OHM 2W TOP PORT 85DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMS-40288N |
|---|---|
| Efficiency - dBA | 85 dBA |
| Efficiency - Testing | 1 mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 550 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 440 Hz |
| Height - Seated (Max) [Max] [z] | 11.8 mm |
| Height - Seated (Max) [Max] [z] | 0.465 in |
| Impedance | 8 Ohms |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 3 W |
| Power - Rated | 2 W |
| Shape | Oval, Rectangular Frame |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [x] | 1.575 in |
| Size / Dimension [y] | 28 mm |
| Size / Dimension [y] | 1.102 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.36 | |
| 10 | $ 4.42 | |||
| 25 | $ 4.08 | |||
| 60 | $ 3.83 | |||
| 120 | $ 3.59 | |||
| 480 | $ 3.17 | |||
Description
General part information
CMS-40288 Series
8 Ohms General Purpose Speaker 2 W 440 Hz ~ 20 kHz Top Oval, Rectangular Frame
