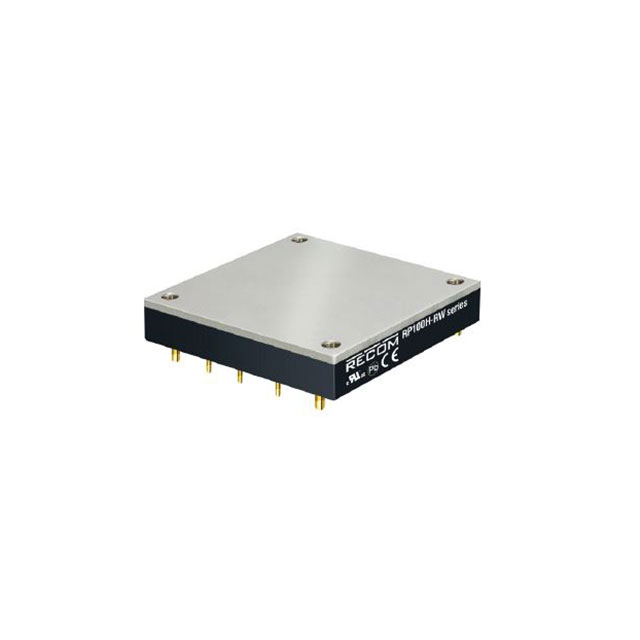

RP100H-11024SRW/P-HC

Active

RECOM Power

DC DC CONVERTER 24V 100W

Search across all available documentation for this part.

Active

RECOM Power

DC DC CONVERTER 24V 100W

Technical Specifications

Parameters and characteristics for this part

Specification	RP100H-11024SRW/P-HC

Applications	Railway, ITE (Commercial)
Current - Output (Max) [Max]	4.2 A
Efficiency	90 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	Half Brick
Power (Watts)	100 W
Size / Dimension [x]	2.4 in
Size / Dimension [x]	61 mm
Size / Dimension [y]	2.28 in
Size / Dimension [y]	57.9 mm
Size / Dimension [z]	24.1 mm
Size / Dimension [z]	24.13 mm
Supplier Device Package	Half Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	43 V
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Applications	Number of Outputs	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Type	Package / Case	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Mounting Type	Voltage - Output 1	Features	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Isolation	Efficiency
RECOM Power RP100H-11024SRW/P-HC	ITE (Commercial) Railway	1	Half Brick	-40 °C	105 C	100 W	Isolated Module	Half Brick	43 V	4.2 A	Through Hole	24 V	OCP OTP OVP Remote On/Off SCP UVLO	160 V	2.4 in	2.28 in	24.1 mm	57.9 mm	61 mm	24.13 mm	3000 V	90 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2	$ 190.07

General part information

Isolated Module DC DC Converter 1 Output 24V 4.2A 43V - 160V Input
