109P0824H602

Obsolete

Sanyo Denki America Inc.

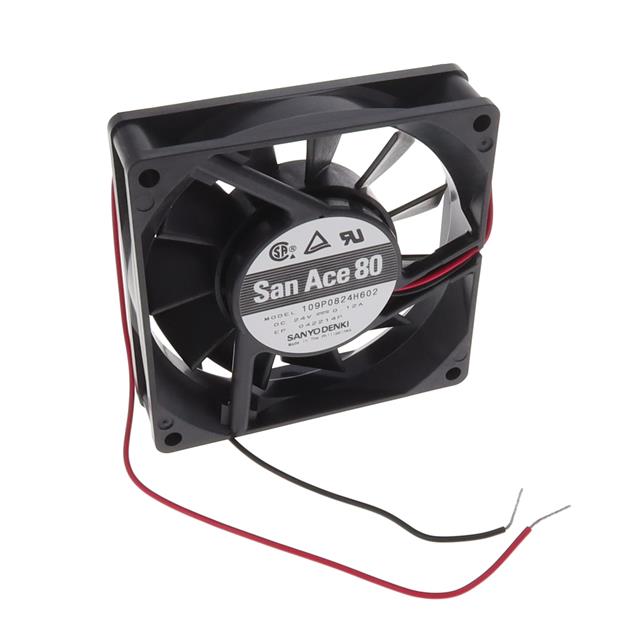

FAN AXIAL 80X20MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing

109P0824H602

Obsolete

Sanyo Denki America Inc.

FAN AXIAL 80X20MM 24VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109P0824H602

Air Flow	0.832 mł/min
Air Flow	29.7 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	120 mA
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Plastic
Noise	31 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	2.88 W
RPM	2900 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	29.4 Pa
Static Pressure	0.118 in H2O
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	0.222 lb
Weight	100.7 g
Width [y]	20 mm

109P0824 Series

Part	Noise	Weight	Weight	Current Rating (Amps)	Material - Frame	Termination	Material - Blade	Fan Type	Power (Watts)	Voltage - Rated	Bearing Type	RPM	Approval Agency	Width [y]	Air Flow	Air Flow	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Width [x]	Voltage Range [Max]	Voltage Range [Min]	Features
Sanyo Denki America Inc. 109P0824M602	25 dB(A)	0.222 lb	100.7 g	70 mA	Plastic	2 Wire Leads	Plastic	Tubeaxial	1.68 W	24 VDC	Ball	2300 RPM	CSA TUV UL	20 mm	0.664 m³/min	23.7 CFM	0.075 in H2O	18.6 Pa	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm
Sanyo Denki America Inc. 109P0824M702	21 dB(A)	0.15 lbs	68.04 g	50 mA	Plastic	2 Wire Leads	Plastic	Tubeaxial	1.2 W	24 VDC	Ball	2000 RPM	CSA TUV UL		0.563 m³/min	20.1 CFM	0.051 in H2O	12.7 Pa	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	15 mm	27.6 VDC	14 VDC
Sanyo Denki America Inc. 109P0824M7D01	21 dB(A)	0.15 lbs	68.04 g	50 mA	Plastic	3 Wire Leads	Plastic	Tubeaxial	1.2 W	24 VDC	Ball	2000 RPM	CSA TUV UL		0.563 m³/min	20.1 CFM	0.051 in H2O	12.7 Pa	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	15 mm	27.6 VDC	14 VDC	Locked Rotor Sensor
Sanyo Denki America Inc. 109P0824M601	25 dB(A)	0.222 lb	100.7 g	70 mA	Plastic	3 Wire Leads	Plastic	Tubeaxial	1.68 W	24 VDC	Ball	2300 RPM	CSA TUV UL	20 mm	0.664 m³/min	23.7 CFM	0.075 in H2O	18.6 Pa	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm				Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109P0824M701	21 dB(A)	0.15 lbs	68.04 g	50 mA	Plastic	3 Wire Leads	Plastic	Tubeaxial	1.2 W	24 VDC	Ball	2000 RPM	CSA TUV UL		0.563 m³/min	20.1 CFM	0.051 in H2O	12.7 Pa	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm	15 mm	27.6 VDC	14 VDC	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109P0824H602	31 dB(A)	0.222 lb	100.7 g	120 mA	Plastic	2 Wire Leads	Plastic	Tubeaxial	2.88 W	24 VDC	Ball	2900 RPM	CSA TUV UL	20 mm	0.832 mł/min	29.7 CFM	0.118 in H2O	29.4 Pa	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm
