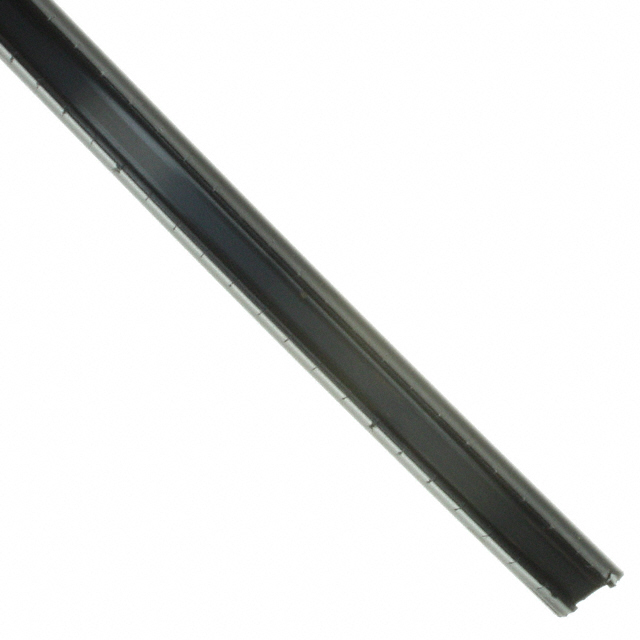

SNGS-5B

Active

Essentra Access Solutions

GROMMET EDGE SLOT PA NYLON BLACK

Search across all available documentation for this part.

Active

Essentra Access Solutions

GROMMET EDGE SLOT PA NYLON BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	SNGS-5B

Bushing, Grommet Type	Grommet - Edging, Slotted
Color	Black
For Use With/Related Products	Irregular Holes, Edges
Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 HB
Panel Cutout Dimensions [x]	30.48 m
Panel Cutout Dimensions [x]	100 ft
Panel Thickness [Max]	6.35 mm
Panel Thickness [Max]	0.25 in
Panel Thickness [Min]	0.188 "
Panel Thickness [Min]	4.78 mm

Part	Material Flammability Rating	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Color	For Use With/Related Products	Material	Bushing, Grommet Type
Essentra Access Solutions SNGS-5B	UL94 HB	30.48 m	100 ft	0.188 "	6.35 mm	0.25 in	4.78 mm	Black	Edges Irregular Holes	Polyamide (PA) Nylon	Grommet - Edging Slotted

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Edging - 100' L (30.48m) Grommet - Edging, Slotted Black

Technical documentation and resources

No documents available
