FSSC002N0

Active

Belden Inc.

CBL FIBER OPTIC FOOT

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC FOOT

Technical Specifications

Parameters and characteristics for this part

Specification	FSSC002N0

Bend Radius	118.11 mm
Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	62.5 µm
Features	Steel Armor
Features	2 pcs per Pkg
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Length	Enter Number of Feet in Order Quantity
Length	999.7 m
Length	3280 ft
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Spool Size	3280 ft
Spool Size	999.7 m
Style	Standard
Tensile Strength	90.7 kg
Type	Singlemode

Part	Jacket Color	Style	Spool Size	Spool Size	Length	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Bend Radius	Features	Features	Type	Tensile Strength	Cladding Diameter [diameter]	Core Diameter [diameter]	Length	Length
Belden Inc. FSSC002N0	Black	Standard	3280 ft	999.7 m	Enter Number of Feet in Order Quantity	-40 °C	70 °C	Polyethylene (PE)	118.11 mm	Steel Armor	2 pcs per Pkg	Singlemode	90.7 kg	125 µm	62.5 µm	999.7 m	3280 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

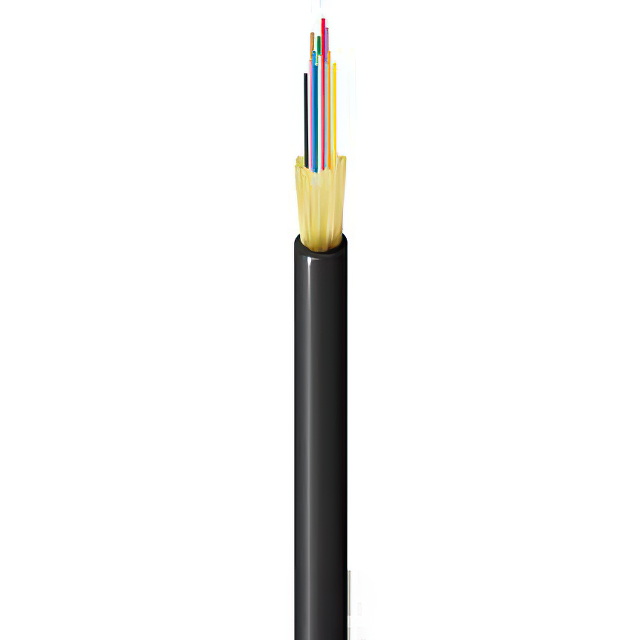

Fiber Optic Cable Black Singlemode 125µm Enter Number of Feet in Order Quantity

Technical documentation and resources
