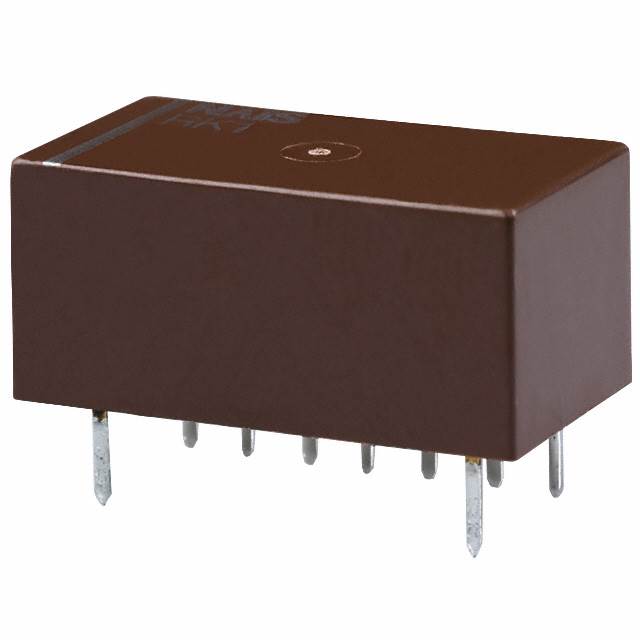

RK1-24V - RK1 Series

RK1-24V

Obsolete
Panasonic Electric Works

RELAY RF SPDT 10MA 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsStandards ChartHow to Read Date Codes+1
RK1-24V - RK1 Series

RK1-24V

Obsolete
Panasonic Electric Works

RELAY RF SPDT 10MA 24V

Deep-Dive with AI

DocumentsStandards ChartHow to Read Date Codes+1

Technical Specifications

Parameters and characteristics for this part

SpecificationRK1-24V
Coil Current8.3 mA
Coil Power200 mW
Coil Resistance2.88 kOhms
Coil TypeNon Latching
Coil Voltage24 VDC
Contact FormSPDT (1 Form C)
Contact Rating (Current)10 mA
FeaturesSealed - Fully
Mounting TypeThrough Hole
Must Operate Voltage18 VDC
Must Release Voltage2.4 VDC
Operate Time10 ms
Operating Temperature [Max]70 °C
Operating Temperature [Min]-40 °C
Release Time6 ms
Switching Voltage30 VDC
Termination StylePC Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

RK1-2 Series

RELAY RF SPDT 10MA 24V
