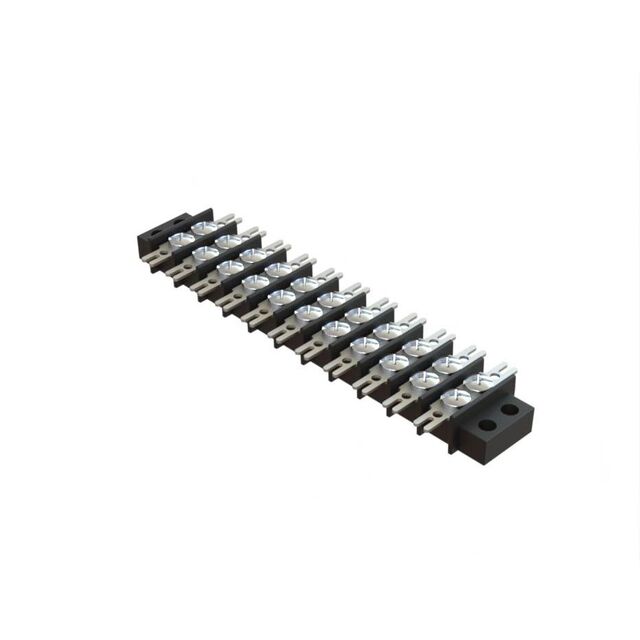

1511-ST

Active

Curtis Industries

CONN BARRIER STRP 11CIRC 0.375"

Search across all available documentation for this part.

Active

Curtis Industries

CONN BARRIER STRP 11CIRC 0.375"

Technical Specifications

Parameters and characteristics for this part

Specification	1511-ST

Barrier Type	2 Wall (Dual)
Bottom Termination	Closed
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	11
Number of Rows	2
Number of Wire Entries [custom]	22
Operating Temperature	110 °C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Tin
Top Termination	Screws with Solder Lugs, Dual
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	10 AWG

Part	Operating Temperature	Features	Top Termination	Wire Gauge [Max]	Wire Gauge [Min]	Number of Circuits	Terminal Block Type	Mounting Type	Number of Rows	Terminal Screw Material	Barrier Type	Pitch [x]	Pitch [x]	Current Rating (Amps)	Material - Insulation	Material Flammability Rating	Number of Wire Entries [custom]	Bottom Termination	Terminal Screw Finish
Curtis Industries 1511W	110 °C	Flange	Screws with Captive Plate	22 AWG	10 AWG	11	Barrier Block	Chassis Panel	2	Steel	2 Wall (Dual)	9.53 mm	0.375 in	20 A	Polyphenylene Oxide (PPO)	UL94 V-0	22	Closed
Curtis Industries 1511-ST	110 °C	Flange	Screws with Solder Lugs Dual	22 AWG	10 AWG	11	Barrier Block	Chassis Panel	2		2 Wall (Dual)	9.53 mm	0.375 in	20 A	Polyphenylene Oxide (PPO)	UL94 V-0	22	Closed	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 7.98

General part information

11 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Solder Lugs, Dual
