PFRA.400.2

Active

SCHURTER Inc.

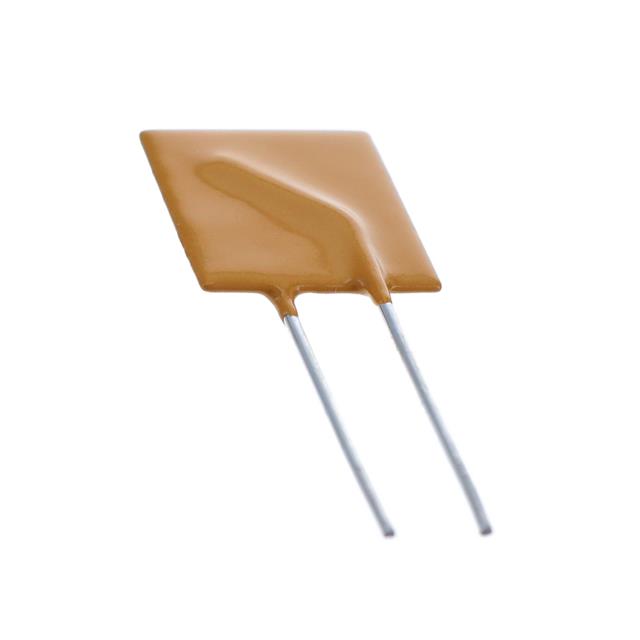

PTC RESET FUSE 30V 4A RADIAL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PTC RESET FUSE 30V 4A RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	PFRA.400.2

Approval Agency	cURus, TUV
Current - Hold (Ih) (Max)	4 A
Current - Max [Max]	40 A
Current - Trip (It)	8 A
Height - Seated (Max) [Max]	0.976 in
Height - Seated (Max) [Max]	24.8 mm
Lead Spacing	5.1 mm
Lead Spacing	0.201 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Resistance - Initial (Ri) (Min) [Min]	10 mOhms
Resistance - Post Trip (R1) (Max) [Max]	0.05 Ohms
Size / Dimension [x]	14.4 mm
Size / Dimension [x]	0.567 "
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Type	Polymeric
Voltage - Max [Max]	30 V

Part	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Voltage - Max [Max]	Resistance - Post Trip (R1) (Max) [Max]	Current - Hold (Ih) (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Resistance - Initial (Ri) (Min) [Min]	Package / Case	Current - Trip (It)	Approval Agency	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]
SCHURTER Inc. PFRA.400.2	Through Hole	0.976 in	24.8 mm	5.1 mm	0.201 in	30 V	0.05 Ohms	4 A	85 °C	-40 °C	10 mOhms	Disc Radial	8 A	cURus TUV	Polymeric	14.4 mm	3 mm	0.118 in	0.567 "	40 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Polymeric PTC Resettable Fuse 30V 4 A Ih Through Hole Radial, Disc
