AZSR1200-1AE-24D
ActiveAmerican Zettler

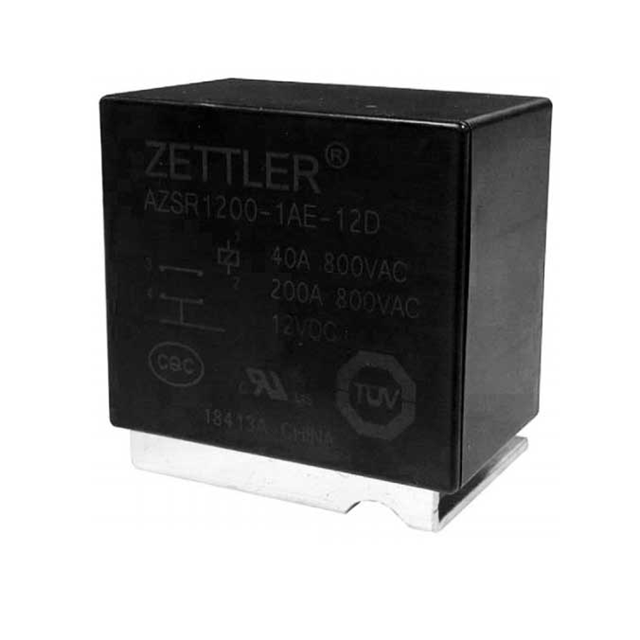

RELAY EV CHG SOLAR SPST 200A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AZSR1200-1AE-24D
ActiveAmerican Zettler
RELAY EV CHG SOLAR SPST 200A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AZSR1200-1AE-24D |
|---|---|
| Approval Agency | TUV, UL |
| Coil Current | 125 mA |
| Coil Insulation | Class F |
| Coil Resistance | 192 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 200 A |
| Load - Max Switching [Max] | 110400 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 40 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | EV Charging, Solar |
| Release Time | 15 ms |
| Switching Voltage | 920 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 37.80 | |
| 10 | $ 33.02 | |||
| 25 | $ 31.29 | |||
| 50 | $ 30.04 | |||
| 100 | $ 28.84 | |||
| 250 | $ 27.50 | |||
Description
General part information
AZSR1200 Series
EV Charging, Solar Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
