09100083006

Active

HARTING Technology Group

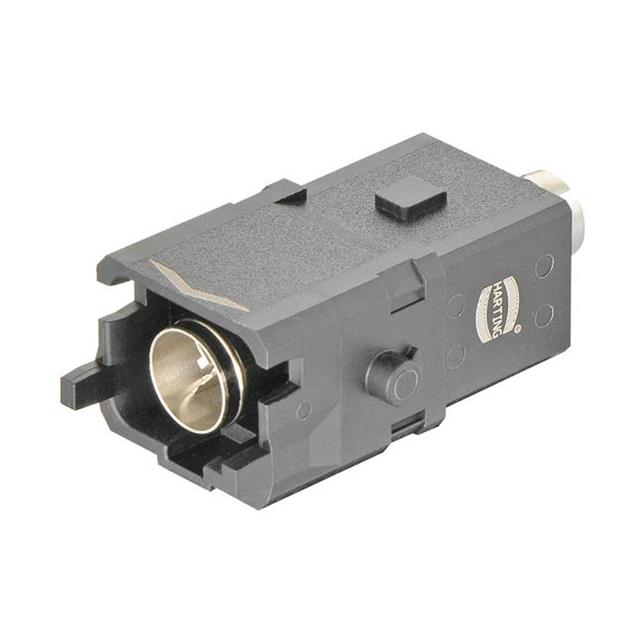

CRIMP INSERT 8PIN MALE

Search across all available documentation for this part.

Active

HARTING Technology Group

CRIMP INSERT 8PIN MALE

Technical Specifications

Parameters and characteristics for this part

Specification	09100083006

Color	Black
Connector Type	Insert without Contacts
Current Rating (Amps)	0.5 A
Gender	Male
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Number of Positions	8+Shield
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Size	1 A
Termination Style	Crimp
Voltage Rating	48 VDC

Part	Gender	Housing Material	Voltage Rating	Material Flammability Rating	Current Rating (Amps)	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Color	Connector Type	Size
HARTING Technology Group 09100083106	Female	Polyamide (PA) Nylon	48 VDC	UL94 V-0	0.5 A	Crimp	-30 ░C	90 °C	8+Shield	Black	Insert without Contacts	1 A
HARTING Technology Group 09100083101	Female	Polyamide (PA) Nylon	48 VDC	UL94 V-0	0.5 A	Crimp	-30 ░C	90 °C	8+Shield	Black	Insert without Contacts	1 A
HARTING Technology Group 09100083001	Male	Polyamide (PA) Nylon	48 VDC	UL94 V-0	0.5 A	Crimp	-30 ░C	90 °C	8+Shield	Black	Insert without Contacts	1 A
HARTING Technology Group 09100083105
HARTING Technology Group 09100083100
HARTING Technology Group 09100083006	Male	Polyamide (PA) Nylon	48 VDC	UL94 V-0	0.5 A	Crimp	-30 ░C	90 °C	8+Shield	Black	Insert without Contacts	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Black 8+Shield Position Crimp
