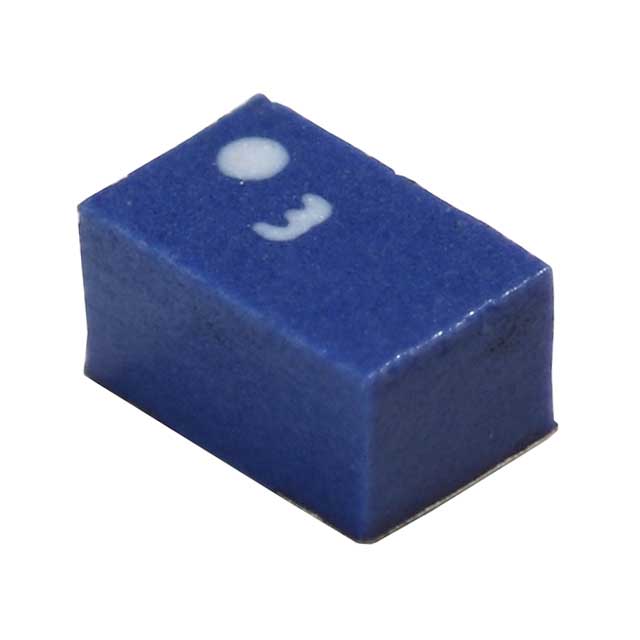

ANT2012LL13R2400A
ActivePulse Electronics
RF ANT 2.4GHZ CHIP SOLDER SMD
Deep-Dive with AI
Search across all available documentation for this part.
ANT2012LL13R2400A
ActivePulse Electronics
RF ANT 2.4GHZ CHIP SOLDER SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT2012LL13R2400A |
|---|---|
| Antenna Type | Chip |
| Applications | Bluetooth, WLAN, Zigbee™ |
| Frequency Range [Max] | 2.492 GHz |
| Frequency Range [Min] | 2.408 GHz |
| Gain | 2.72 dBi |
| Height (Max) [Max] [z] | 1 mm |
| Height (Max) [Max] [z] | 0.039 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 1 W |
| Return Loss | -22 dB |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | Solder |
