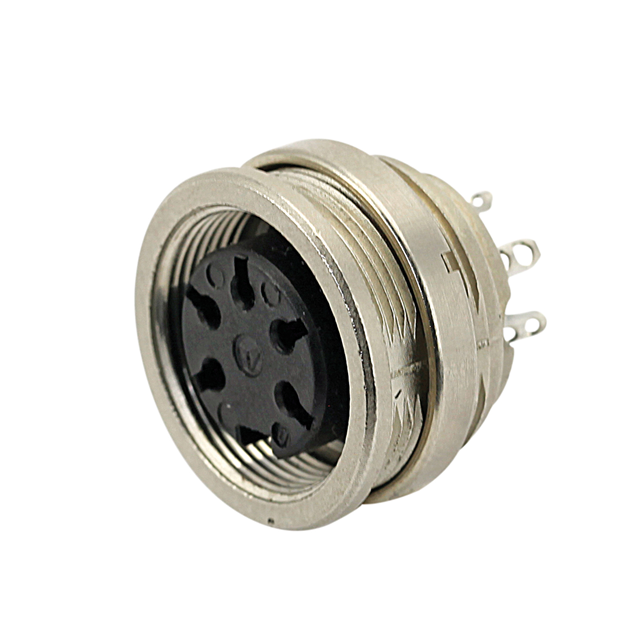

C091 31N005 200 2

Active

Amphenol Sine Systems Corp

FRONT MOUNTING FEMALE METAL RECE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

FRONT MOUNTING FEMALE METAL RECE

Technical Specifications

Parameters and characteristics for this part

Specification	C091 31N005 200 2

Applications	Marine, Industrial, Medical, Instrumentation, Testing Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	7 A
Ingress Protection	IP69K, IP65, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-5
Shielding	Shielded
Voltage Rating	250 VDC

Part	Connector Type	Shell Material	Shielding	Shell Finish	Shell Size - Insert	Color	Current Rating (Amps)	Material Flammability Rating	Ingress Protection	Voltage Rating	Applications	Primary Material	Orientation	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Contact Finish - Mating
Amphenol Sine Systems Corp C091 31N005 200 2	Receptacle Female Sockets	Zinc Die Cast	Shielded	Nickel	M16-5	Silver	7 A	UL94 V-0	IP65 IP67 IP69K	250 VDC	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Metal	Keyed	Thermoplastic	100 °C	-40 °C	Bulkhead - Rear Side Nut	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.93

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder Cup
