AT04-18PA-BM13BK

Active

Amphenol Sine Systems Corp

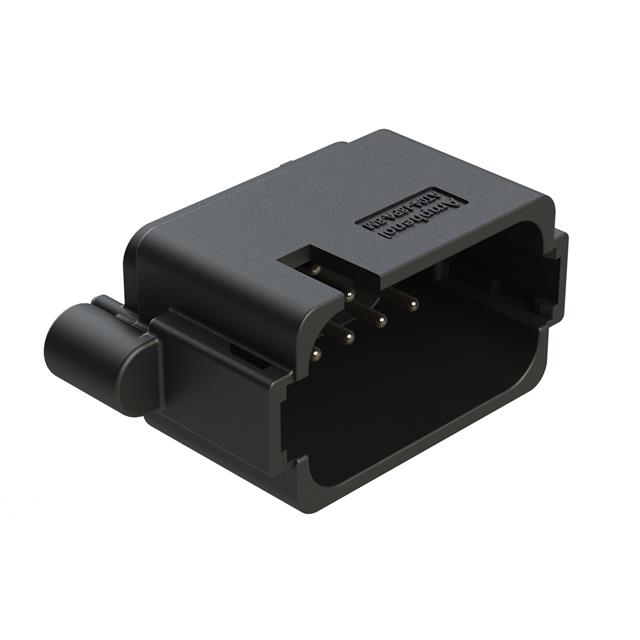

18 POSITION, PCB RECEPTACLE, FLA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AT04-18PA-BM13BK

Active

Amphenol Sine Systems Corp

18 POSITION, PCB RECEPTACLE, FLA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-18PA-BM13BK

Applications	Industrial, General Purpose, Automotive
Connector Type	Receptacle
Contact Finish - Mating	Nickel
Contact Length - Post	0.128 "
Contact Length - Post	3.25 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	13 A
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	IP67 - Dust Tight, Waterproof
Insulation Color	Black
Insulation Height	1.01 in
Insulation Height	25.65 mm
Insulation Material	Thermoplastic
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.184 in
Pitch - Mating	4.68 mm
Row Spacing - Mating	4.83 mm
Row Spacing - Mating	0.19 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

AT04-18PA Series

Part	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Type	Insulation Height	Insulation Height	Number of Positions	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Features	Termination	Applications	Ingress Protection	Contact Material	Number of Positions Loaded	Number of Rows	Contact Length - Post	Contact Length - Post	Insulation Material	Style	Voltage Rating	Contact Shape	Mounting Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Finish - Mating
Amphenol Sine Systems Corp AT04-18PA-BM12	Gray	4.83 mm	0.19 in	Receptacle	Male Pin	1.01 in	25.65 mm	18	Latch Holder	-55 °C	125 °C	Shrouded - 4 Wall	Board Guide Mounting Flange Potting Wall	Solder	Automotive General Purpose Industrial	IP67 - Dust Tight Waterproof	Copper Alloy	All	3	0.128 "	3.25 mm	Thermoplastic	Board to Cable/Wire	250 VDC	Circular	Through Hole	13 A	0.184 in	4.68 mm	Gold
Amphenol Sine Systems Corp AT04-18PA-BM11BK	Black	4.83 mm	0.19 in	Receptacle	Male Pin	1.01 in	25.65 mm	18	Latch Holder	-55 °C	125 °C	Shrouded - 4 Wall	Board Guide Mounting Flange	Solder	Automotive General Purpose Industrial	IP67 - Dust Tight Waterproof	Copper Alloy	All	3	0.128 "	3.25 mm	Thermoplastic	Board to Cable/Wire	250 VDC	Circular	Through Hole	13 A	0.184 in	4.68 mm	Gold
Amphenol Sine Systems Corp AT04-18PA-BM12BK	Black	4.83 mm	0.19 in	Receptacle	Male Pin	1.01 in	25.65 mm	18	Latch Holder	-55 °C	125 °C	Shrouded - 4 Wall	Board Guide Mounting Flange Potting Wall	Solder	Automotive General Purpose Industrial	IP67 - Dust Tight Waterproof	Copper Alloy	All	3	0.128 "	3.25 mm	Thermoplastic	Board to Cable/Wire	250 VDC	Circular	Through Hole	13 A	0.184 in	4.68 mm	Gold
Amphenol Sine Systems Corp AT04-18PA-BM13	Gray	4.83 mm	0.19 in	Receptacle	Male Pin	1.01 in	25.65 mm	18	Latch Holder	-55 °C	125 °C	Shrouded - 4 Wall	Board Guide	Solder	Automotive General Purpose Industrial	IP67 - Dust Tight Waterproof	Copper Alloy	All	3	0.128 "	3.25 mm	Thermoplastic	Board to Cable/Wire	250 VDC	Circular	Through Hole	13 A	0.184 in	4.68 mm	Nickel
Amphenol Sine Systems Corp AT04-18PA-BM14BK	Black	4.83 mm	0.19 in	Receptacle	Male Pin	1.01 in	25.65 mm	18	Latch Holder	-55 °C	125 °C	Shrouded - 4 Wall	Board Guide Mating Flange	Solder	Automotive General Purpose Industrial	IP67 - Dust Tight Waterproof	Copper Alloy	All	3	0.128 "	3.25 mm	Thermoplastic	Board to Cable/Wire	250 VDC	Circular	Through Hole	13 A	0.184 in	4.68 mm	Nickel
Amphenol Sine Systems Corp AT04-18PA-BM11	Gray	4.83 mm	0.19 in	Receptacle	Male Pin	1.01 in	25.65 mm	18	Latch Holder	-55 °C	125 °C	Shrouded - 4 Wall	Board Guide Mounting Flange	Solder	Automotive General Purpose Industrial	IP67 - Dust Tight Waterproof	Copper Alloy	All	3	0.128 "	3.25 mm	Thermoplastic	Board to Cable/Wire	250 VDC	Circular	Through Hole	13 A	0.184 in	4.68 mm	Gold
Amphenol Sine Systems Corp AT04-18PA-BM14	Gray	4.83 mm	0.19 in	Receptacle	Male Pin	1.01 in	25.65 mm	18	Latch Holder	-55 °C	125 °C	Shrouded - 4 Wall	Board Guide Mounting Flange	Solder	Automotive General Purpose Industrial	IP67 - Dust Tight Waterproof	Copper Alloy	All	3	0.128 "	3.25 mm	Thermoplastic	Board to Cable/Wire	250 VDC	Circular	Through Hole	13 A	0.184 in	4.68 mm	Nickel
Amphenol Sine Systems Corp AT04-18PA-BM13BK	Black	4.83 mm	0.19 in	Receptacle	Male Pin	1.01 in	25.65 mm	18	Latch Holder	-55 °C	125 °C	Shrouded - 4 Wall	Board Guide	Solder	Automotive General Purpose Industrial	IP67 - Dust Tight Waterproof	Copper Alloy	All	3	0.128 "	3.25 mm	Thermoplastic	Board to Cable/Wire	250 VDC	Circular	Through Hole	13 A	0.184 in	4.68 mm	Nickel
