5120.0300.1

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C18 PANEL QC

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C18 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	5120.0300.1

Accomodates a Fuse	False
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C18
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	1 A
Current Rating - Filter	1 A
Features	Shielded, Front or Rear Side Mount
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Number of Positions	2
Panel Cutout Dimensions	Variable Size
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Voltage Rating - Appliance Inlet	Panel Cutout Dimensions	Approval Agency	Termination	Termination	Termination	Filter Type	Connector Type	Mounting Type	Connector Style	Current Rating - Appliance Inlet	Current Rating - Filter	Accomodates a Fuse	Features	Material Flammability Rating	Ingress Protection	Number of Positions
SCHURTER Inc. 5120.0300.0	250 VAC	Variable Size	CCC cULus ENEC	0.25 in	6.3 mm	Quick Connect	Filtered (EMI RFI) - Commercial Medical	Male Blades Receptacle	Flange Panel Mount	IEC 320-C14	1 A	1 A		Shielded	UL94 V-0	IP40
SCHURTER Inc. 5120.0300.1	250 VAC	Variable Size	CCC cULus ENEC	0.25 in	6.3 mm	Quick Connect	Filtered (EMI RFI) - Commercial Medical	Male Blades Receptacle	Flange Panel Mount	IEC 320-C18	1 A	1 A		Front or Rear Side Mount Shielded	UL94 V-0	IP40	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

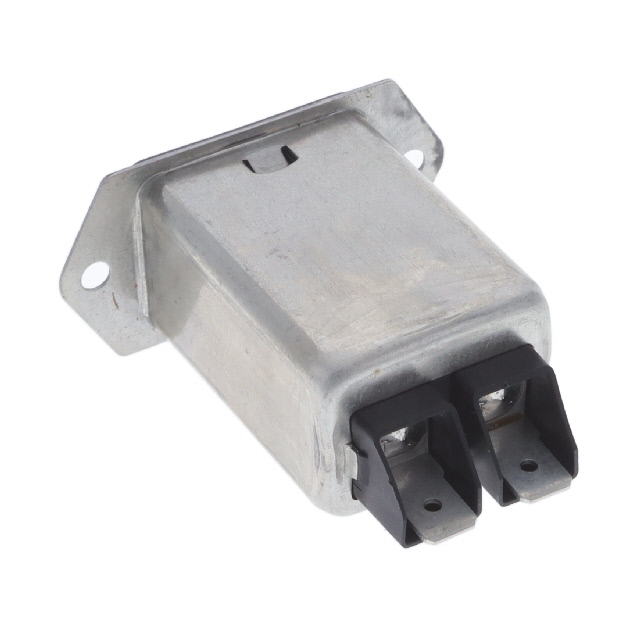

Power Entry Connector Receptacle, Male Blades IEC 320-C18 Panel Mount, Flange
