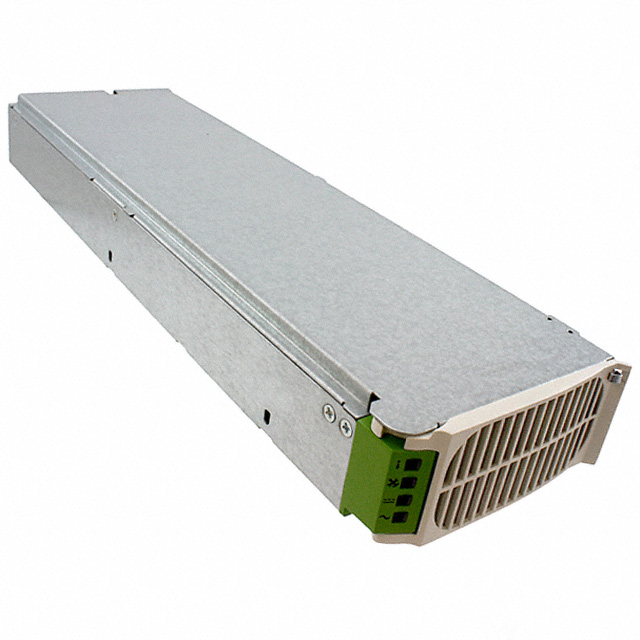

CP2725AC54TEZ

Active

OmniOn Power™

AC/DC CONVERTER 54V 5V 2725W

Search across all available documentation for this part.

Active

OmniOn Power™

AC/DC CONVERTER 54V 5V 2725W

Technical Specifications

Parameters and characteristics for this part

Specification	CP2725AC54TEZ

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	50.5 A
Current - Output 2 [custom]	750 mA
Efficiency	95 %
Features	Load Sharing, PMBus™, Universal Input, Standby Output, Remote Sense, Adjustable Output, PFC, Hot Swappable, I2C Interface
Mounting Type	Rack Mount
Number of Outputs	2
Operating Temperature [Max]	75 ¯C
Operating Temperature [Min]	-10 °C
Power (Watts)	2725 W
Size / Dimension [x]	351.8 mm
Size / Dimension [x]	13.85 "
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	1.63 in
Size / Dimension [z]	41.4 mm
Type	Front End
Voltage - Input [Max]	275 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	54 V
Voltage - Output 2	5 V

Part	Applications	Voltage - Output 2	Efficiency	Current - Output 1	Voltage - Isolation	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Type	Number of Outputs	Voltage - Output 1	Current - Output 2 [custom]	Mounting Type	Features	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]
OmniOn Power™ CP2725AC54TEP	ITE (Commercial)	5 V	95 %	50 A	3000 V	275 VAC	85 VAC	2725 W	351.8 mm	13.85 "	4 "	101.6 mm	1.63 in	41.4 mm	Front End	2	54 V	750 mA	Rack Mount	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	CE	-10 °C	75 ¯C
OmniOn Power™ CP2725AC54TEZ	ITE (Commercial)	5 V	95 %	50.5 A	3000 V	275 VAC	85 VAC	2725 W	351.8 mm	13.85 "	4 "	101.6 mm	1.63 in	41.4 mm	Front End	2	54 V	750 mA	Rack Mount	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	CE	-10 °C	75 ¯C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Front End AC DC Converters 2 Output 54V 5V 85 ~ 275 VAC Input
