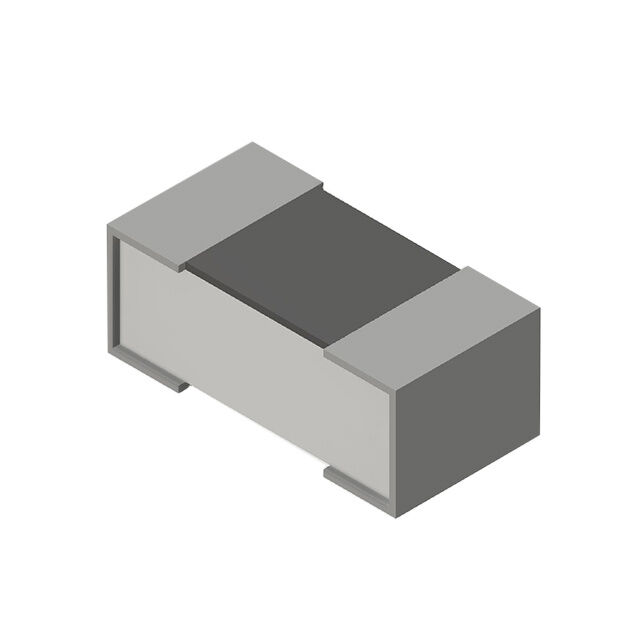

RNCF1210TKT120K
ActiveStackpole Electronics Inc
RES SMD 120K OHM 0.01% 1/3W 1210
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RNCF1210TKT120K
ActiveStackpole Electronics Inc
RES SMD 120K OHM 0.01% 1/3W 1210
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RNCF1210TKT120K |
|---|---|
| Composition | Thin Film |
| Features | Automotive AEC-Q200 |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Power (Watts) | 0.333 W |
| Power (Watts) | 0.3333333333333333 W |
| Ratings | AEC-Q200 |
| Resistance | 120 kOhms |
| Size / Dimension [x] | 0.122 " |
| Size / Dimension [x] | 3.1 mm |
| Size / Dimension [y] | 2.4 mm |
| Size / Dimension [y] | 0.094 in |
| Supplier Device Package | 1210 |
| Temperature Coefficient | 10 ppm/°C |
| Tolerance | 0.01 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.28 | |
| 10 | $ 1.06 | |||
| 50 | $ 0.93 | |||
| 100 | $ 0.88 | |||
| 500 | $ 0.78 | |||
| Digi-Reel® | 1 | $ 1.28 | ||
| 10 | $ 1.06 | |||
| 50 | $ 0.93 | |||
| 100 | $ 0.88 | |||
| 500 | $ 0.78 | |||
| Tape & Reel (TR) | 1000 | $ 0.75 | ||
| 2000 | $ 0.72 | |||
| 3000 | $ 0.70 | |||
| 5000 | $ 0.68 | |||
| 7000 | $ 0.67 | |||
| 10000 | $ 0.66 | |||
Description
General part information
RNCF1210T Series
120 kOhms ±0.01% 0.333W, 1/3W Chip Resistor 1210 (3225 Metric) Automotive AEC-Q200 Thin Film
