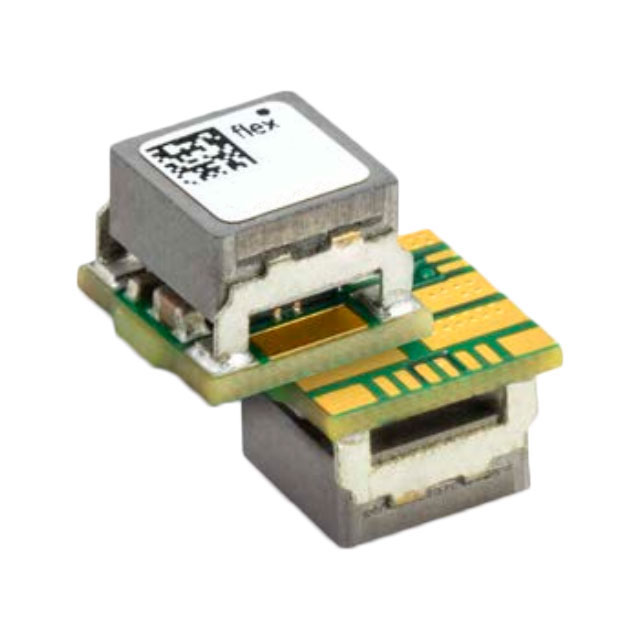

PMU8218 D
ActiveFlex Power Modules
DC DC CONVERTER 0.6-5.5V 22W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PMU8218 D
ActiveFlex Power Modules
DC DC CONVERTER 0.6-5.5V 22W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PMU8218 D |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, UL, IEC, TUV, CSA |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 4 A |
| Efficiency | 88.5 % |
| Features | Remote On/Off, Adjustable Output |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-SMD Module |
| Power (Watts) | 22 W |
| Size / Dimension [x] | 7.5 mm |
| Size / Dimension [x] | 0.3 in |
| Size / Dimension [y] | 7.5 mm |
| Size / Dimension [y] | 0.3 " |
| Size / Dimension [z] | 0.21 in |
| Size / Dimension [z] | 5.4 mm |
| Standard Number | 62368-1 |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 17 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.64 | |
| 5 | $ 5.43 | |||
| 10 | $ 5.34 | |||
| 25 | $ 5.23 | |||
| 50 | $ 5.14 | |||
| Digi-Reel® | 1 | $ 5.64 | ||
| 5 | $ 5.43 | |||
| 10 | $ 5.34 | |||
| 25 | $ 5.23 | |||
| 50 | $ 5.14 | |||
| Tape & Reel (TR) | 150 | $ 5.01 | ||
| 300 | $ 4.93 | |||
| 450 | $ 4.88 | |||
| 750 | $ 4.83 | |||
| 1050 | $ 4.79 | |||
| 1500 | $ 4.75 | |||
Description
General part information
PMU821 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 4A 4.5V - 17V Input
