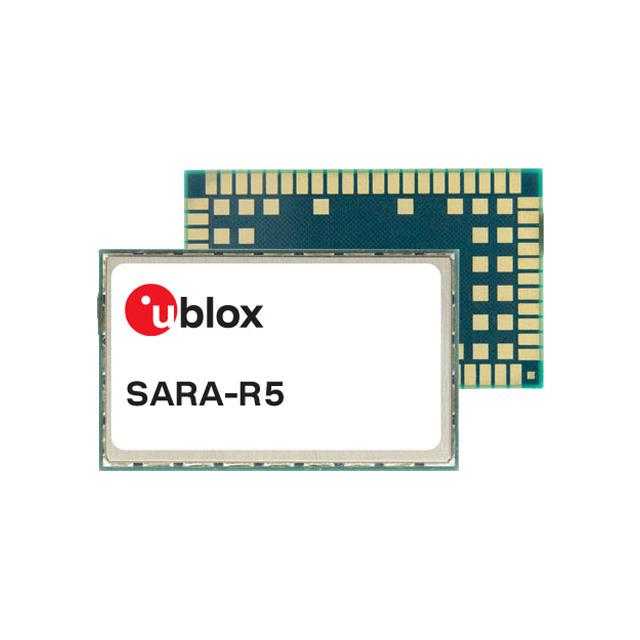

SARA-R500S-61B

Active

u-blox

RF TXRX MODULE CELL SMD

Deep-Dive with AI

Search across all available documentation for this part.

SARA-R500S-61B

Active

u-blox

RF TXRX MODULE CELL SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SARA-R500S-61B

Antenna Type	Antenna Not Included
Current - Receiving [Max]	195 mA
Current - Receiving [Min]	85 mA
Current - Transmitting [Max]	395 mA
Current - Transmitting [Min]	85 mA
Data Rate	1.2 Mbps
Frequency	850 MHz, 600 MHz, 2100 MHz, 1900 MHz, 1800 MHz, 900 MHz, 800 MHz, 750 MHz, 1.7 GHz, 700 MHz
Modulation	QPSK
Mounting Type	Surface Mount
Package / Case	96-SMD Module
Power - Output	23 dBmW
Protocol	HSPA, UMTS, CDMA, 5G, GPRS, GPS, Galileo, GNSS, GLONASS, Beidou, LTE
RF Family/Standard	Cellular
Sensitivity	-167 dBm
Utilized IC / Part	UBX-R5
Voltage - Supply [Max]	4.4 V
Voltage - Supply [Min]	3.3 V

SARA-R500 Series

Part	Utilized IC / Part	Accessory Type	For Use With/Related Products	Sensitivity	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Receiving [Max]	Current - Receiving [Min]	Power - Output	Mounting Type	Package / Case	Data Rate	Current - Transmitting [Max]	Current - Transmitting [Min]	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	Frequency	Antenna Type	Serial Interfaces	Modulation
u-blox ADP-SARA-R500E-01	SARA-R500E	Adapter Board	SARA-R500E
u-blox SARA-R500S-01B	UBX-R5			-167 dBm	3.3 V	4.4 V	195 mA	95 mA	23 dBmW	Surface Mount	96-SMD Module	1.2 Mbps	395 mA	95 mA	Cellular Navigation	85 °C	-40 °C	5G Beidou Galileo GLONASS GNSS GPS LTE	1.7 GHz 600 MHz 700 MHz 750 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz	Antenna Not Included
u-blox SARA-R500E-01B	UBX-R5			-167 dBm	3.3 V	4.4 V	195 mA	85 mA	23 dBmW	Surface Mount	96-SMD Module	1.2 Mbps	395 mA	85 mA	Cellular Navigation			Beidou CDMA Galileo GLONASS GNSS GPRS GPS HSPA LTE UMTS	1.7 GHz 600 MHz 700 MHz 750 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz	Antenna Not Included	GPIO I2C I2S SDIO SPI UART USB	QPSK
u-blox SARA-R500S-61B	UBX-R5			-167 dBm	3.3 V	4.4 V	195 mA	85 mA	23 dBmW	Surface Mount	96-SMD Module	1.2 Mbps	395 mA	85 mA	Cellular			5G Beidou CDMA Galileo GLONASS GNSS GPRS GPS HSPA LTE UMTS	1.7 GHz 600 MHz 700 MHz 750 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz	Antenna Not Included		QPSK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 46.19
		10	$ 34.64
		50	$ 29.44
	Digi-Reel®	1	$ 46.19
		10	$ 34.64
		50	$ 29.44
	Tape & Reel (TR)	250	$ 24.06

Description

General part information

SARA-R500 Series

Cellular 5G, BeiDou, CDMA, Galileo, GLONASS, GNSS, GPRS, GPS, HSPA, LTE, UMTS Transceiver Module 600MHz, 700MHz, 750MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz Antenna Not Included Surface Mount
