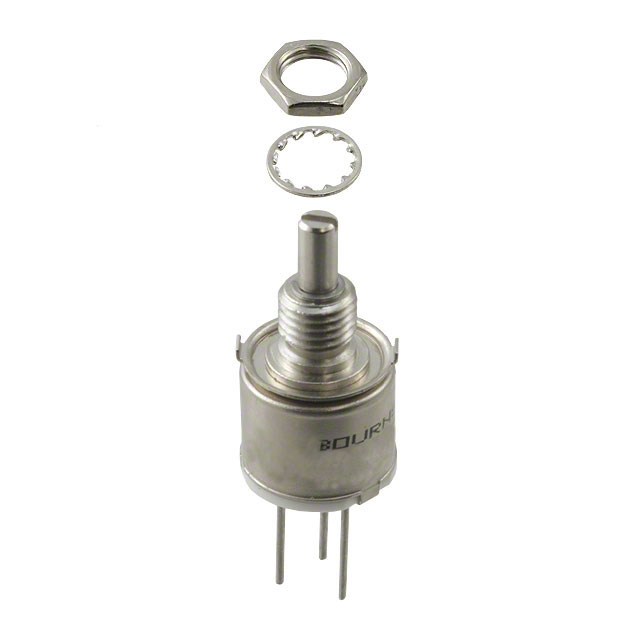

3862C-162-102AL

Active

Bourns Inc.

POT 1K OHM 1W CERMET LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3862C-162-102AL

Active

Bourns Inc.

POT 1K OHM 1W CERMET LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3862C-162-102AL

Actuator Diameter [diameter]	0.125 in
Actuator Diameter [diameter]	3.18 mm
Actuator Length	12.7 mm
Actuator Length [x]	0.5 in
Actuator Type	Slotted
Adjustment Type	User Defined
Built in Switch	False
Bushing Thread	1/4-32
Number of Gangs	1
Number of Turns	1
Power (Watts)	1 W
Resistance (Ohms)	1 kOhms
Resistive Material	Cermet
Rotation	295 °
Taper	Linear
Temperature Coefficient	150 ppm/°C
Termination Style	Solder Lug
Tolerance	10 %

3862C Series

Part	Resistance (Ohms)	Number of Gangs	Actuator Type	Number of Turns	Temperature Coefficient	Actuator Length [z]	Actuator Length [z]	Bushing Thread	Power (Watts)	Adjustment Type	Taper	Tolerance	Rotation	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Resistive Material	Termination Style	Resistance (Ohms)	Actuator Length [x]	Actuator Length	Actuator Length [x]
Bourns Inc. 3862C-282-502AL	5 kOhms	1	Slotted	1	150 ppm/°C	22.23 mm	0.875 in	1/4-32	1 W	User Defined	Linear	10 %	295 °	0.125 in	3.18 mm	Cermet	Solder Lug
Bourns Inc. 3862C-162-103A		1	Slotted	1	150 ppm/°C			1/4-32	1 W	User Defined	Linear	10 %	295 °	0.125 in	3.18 mm	Cermet	Solder Lug	10k	0.5 in	12.7 mm
Bourns Inc. 3862C-122-102AL	1 kOhms	1	Slotted	1	150 ppm/°C			1/4-32	1 W	User Defined	Linear	10 %	295 °	0.125 in	3.18 mm	Cermet	Solder Lug		0.375 in		9.53 mm
Bourns Inc. 3862C-282-103AL		1	Slotted	1	150 ppm/°C	22.23 mm	0.875 in	1/4-32	1 W	User Defined	Linear	10 %	295 °	0.125 in	3.18 mm	Cermet	Solder Lug	10k
Bourns Inc. 3862C-202-502AL	5 kOhms	1	Slotted	1	150 ppm/°C			1/4-32	1 W	User Defined	Linear	10 %	295 °	0.125 in	3.18 mm	Cermet	Solder Lug		0.625 in		15.88 mm
Bourns Inc. 3862C-282-503A	50 kOhms	1	Slotted	1	150 ppm/°C	22.23 mm	0.875 in	1/4-32	1 W	User Defined	Linear	10 %	295 °	0.125 in	3.18 mm	Cermet	Solder Lug
Bourns Inc. 3862C-282-102AL	1 kOhms	1	Slotted	1	150 ppm/°C	22.23 mm	0.875 in	1/4-32	1 W	User Defined	Linear	10 %	295 °	0.125 in	3.18 mm	Cermet	Solder Lug
Bourns Inc. 3862C-162-102AL	1 kOhms	1	Slotted	1	150 ppm/°C			1/4-32	1 W	User Defined	Linear	10 %	295 °	0.125 in	3.18 mm	Cermet	Solder Lug		0.5 in	12.7 mm
Bourns Inc. 3862C-286-103AL		1	Slotted	1	150 ppm/°C	22.23 mm	0.875 in	1/4-32	1 W	Top Adjustment	Linear	10 %	295 °	0.125 in	3.18 mm	Cermet	PC Pins	10k
Bourns Inc. 3862C-202-104AL	100 kOhms	1	Slotted	1	150 ppm/°C			1/4-32	1 W	User Defined	Linear	10 %	295 °	0.125 in	3.18 mm	Cermet	Solder Lug		0.625 in		15.88 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 14.20

Description

General part information

3862C Series

1k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Cermet 1W Solder Lug
