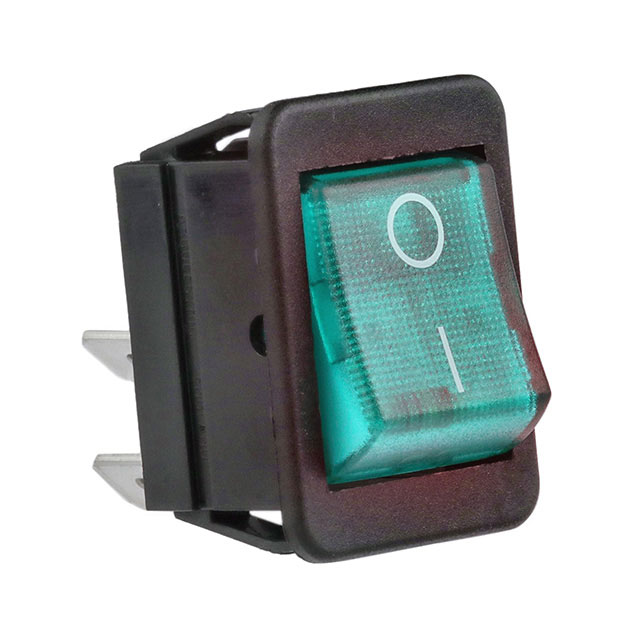

C1353ABNAB

Active

BULGIN LIMITED

SWITCH ROCKER DPST ILLUM

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH ROCKER DPST ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	C1353ABNAB

null

Part	Termination Style	Actuator Marking	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Actuator Type	Illumination Voltage (Nominal)	Current Rating (Amps)	Voltage Rating - AC	Color - Actuator/Cap	Mounting Type	Circuit	Voltage Rating - DC	Illumination Type, Color	Switch Function
BULGIN LIMITED C1353ABBG3602AW	Quick Connect - 0.250" (6.3mm)	O -	30.1 mm	22.2 mm	CSA UL	Concave (Curved) - Illuminated	250 VAC	20 A	250 V	Green	Panel Mount Snap-In	DPST-NO	24 V	Green Neon	On-Off
BULGIN LIMITED C1353ABNAB
BULGIN LIMITED C1353ABBG2602AW	Quick Connect - 0.250" (6.3mm)	O -	30.1 mm	22.2 mm	CSA UL	Concave (Curved) - Illuminated	125 VAC	20 A	250 V	Green	Panel Mount Snap-In	DPST-NO	24 V	Green Neon	On-Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch
