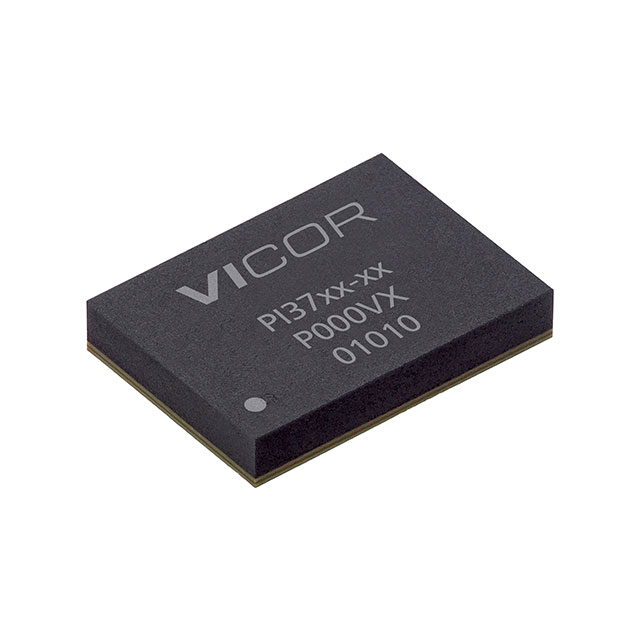

PI3740-00-BGMP
ObsoleteVicor Corporation
IC REG BUCK-BOOST ADJ 108LGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PI3740-00-BGMP
ObsoleteVicor Corporation
IC REG BUCK-BOOST ADJ 108LGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PI3740-00-BGMP |
|---|---|
| Current - Output | 7.42 A |
| Frequency - Switching | 1 MHz |
| Function | Step-Up/Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Package / Case | 108-BBGA Module |
| Supplier Device Package | 108-BGA |
| Supplier Device Package [x] | 10.5 |
| Supplier Device Package [y] | 14.5 |
| Synchronous Rectifier | True |
| Topology | Buck-Boost |
| Voltage - Input (Max) [Max] | 60 V |
| Voltage - Input (Min) [Min] | 8 V |
| Voltage - Output (Max) [Max] | 50 V |
| Voltage - Output (Min/Fixed) | 10 V |
| Voltage - Output (Min/Fixed) | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PI3740 Series
Buck-Boost Switching Regulator IC Positive Adjustable (Fixed) 10V (12V) 1 Output 7.42A 108-BBGA Module
