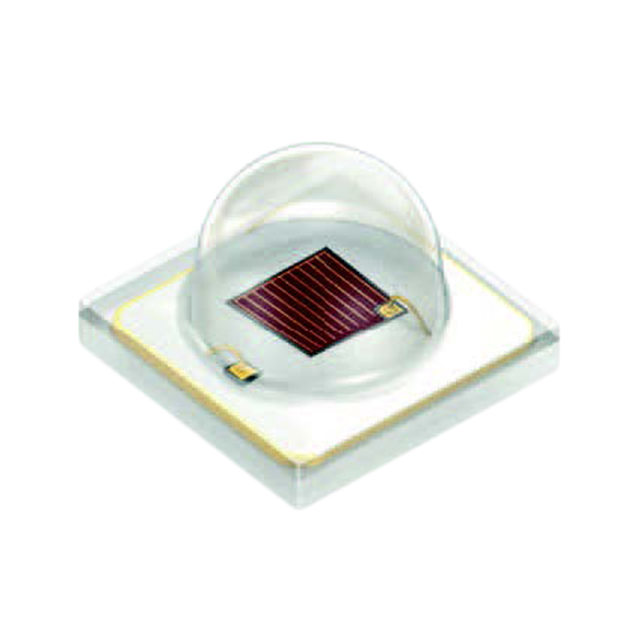

GH CS8PM1.24-4T2U-1-0-350-R18

Obsolete

ams-OSRAM USA INC.

LED OSLON SSL80 RED 656NM SMD

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

LED OSLON SSL80 RED 656NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	GH CS8PM1.24-4T2U-1-0-350-R18

Color	Red
Current - Max [Max]	1 A
Current - Test	350 mA
Height - Seated (Max) [Max] [z]	0.091 "
Height - Seated (Max) [Max] [z]	2.31 mm
Luminous Flux @ Current/Temperature	530 mW
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	5.3 °C/W
Viewing Angle	80 °
Voltage - Forward (Vf) (Typ)	2.15 V
Wavelength	656 nm
Wavelength [Max]	666 nm
Wavelength [Min]	646 nm

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Viewing Angle	Mounting Type	Luminous Flux @ Current/Temperature	Wavelength	Wavelength [Min]	Wavelength [Max]	Thermal Resistance of Package [custom]	Supplier Device Package	Package / Case	Package / Case	Color	Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
ams-OSRAM USA INC. GH CS8PM1.24-4T2U-1-0-350-R18	0.118 in	3 mm	3 mm	0.118 in	2.15 V	1 A	80 °	Surface Mount	530 mW	656 nm	646 nm	666 nm	5.3 °C/W	SMD	1212	3030 Metric	Red	350 mA	0.091 "	2.31 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color OSLON® SSL 80 Red 656nm (646nm ~ 666nm) 1212 (3030 Metric)
