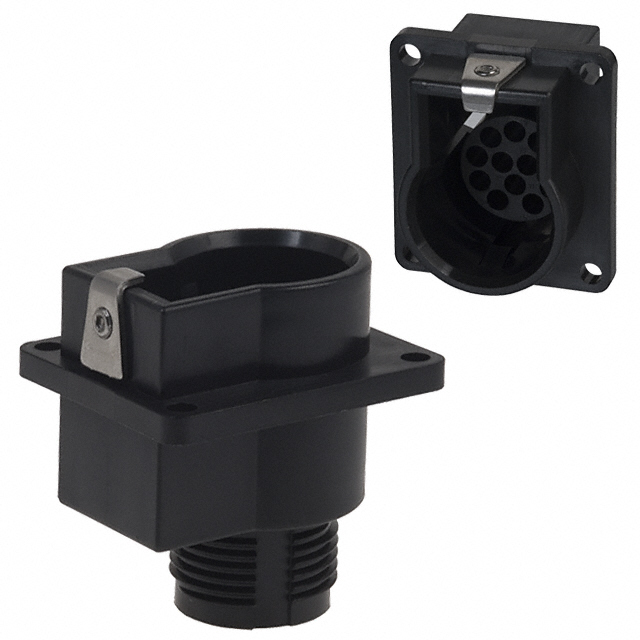

MBG12R-11

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG FMALE 12POS PNL MT

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG FMALE 12POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	MBG12R-11

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Insert Material	Thermoplastic, Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material	Thermoplastic Polyester
Shell Size - Insert	12
Shielding	Unshielded
Type	For Female Sockets

Part	Type	Shell Size - Insert	Contact Size	Shell Material	Note	Shielding	Connector Type	Housing Color	Insert Material	Contact Shape	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Type	Number of Positions	Material Flammability Rating
Souriau-Sunbank by Eaton MBG12R-11	For Female Sockets	12	16	Thermoplastic Polyester	Contacts Not Included	Unshielded	Receptacle Housing	Black	Thermoplastic Halogen Free	Circular	Flange	-55 °C	125 °C	Latch Lock	Crimp	12	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle Housing Panel Mount
