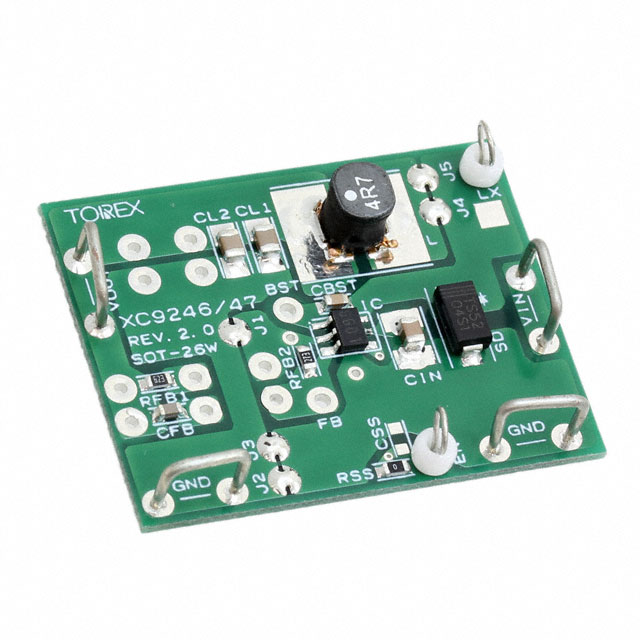

XC9246B65CMR-G-EVB

Active

Torex Semiconductor Ltd

BOARD EVAL FOR XC9246B65

Search across all available documentation for this part.

Active

Torex Semiconductor Ltd

BOARD EVAL FOR XC9246B65

Technical Specifications

Parameters and characteristics for this part

Part	Function	Voltage - Output (Max)	Supplier Device Package	Mounting Type	Voltage - Input (Max) [Max]	Output Type	Topology	Number of Outputs	Package / Case	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Synchronous Rectifier	Frequency - Switching	Voltage - Output (Min/Fixed)	Output Configuration	Voltage - Input (Min) [Min]	Utilized IC / Part	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Board Type	Supplied Contents	Main Purpose	Regulator Topology	Outputs and Type	Outputs and Type
Torex Semiconductor Ltd XC9246B42CMR-G	Step-Down	5 V	SOT-26W	Surface Mount	16 V	Adjustable	Buck	1	SOT-26W	1 A	85 °C	-40 °C		1.2 MHz	1.5 V	Positive	4.5 V
Torex Semiconductor Ltd XC9246B65CMR-G-EVB										1 A				1.2 MHz				XC9246B65C	1.2 V	3.8 V	16 V	6 V	Fully Populated	Board(s)	DC/DC Step Down	Buck	Non-Isolated	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 28.41

General part information

XC9246B65C - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
